SELECT A DIAGRAM

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor

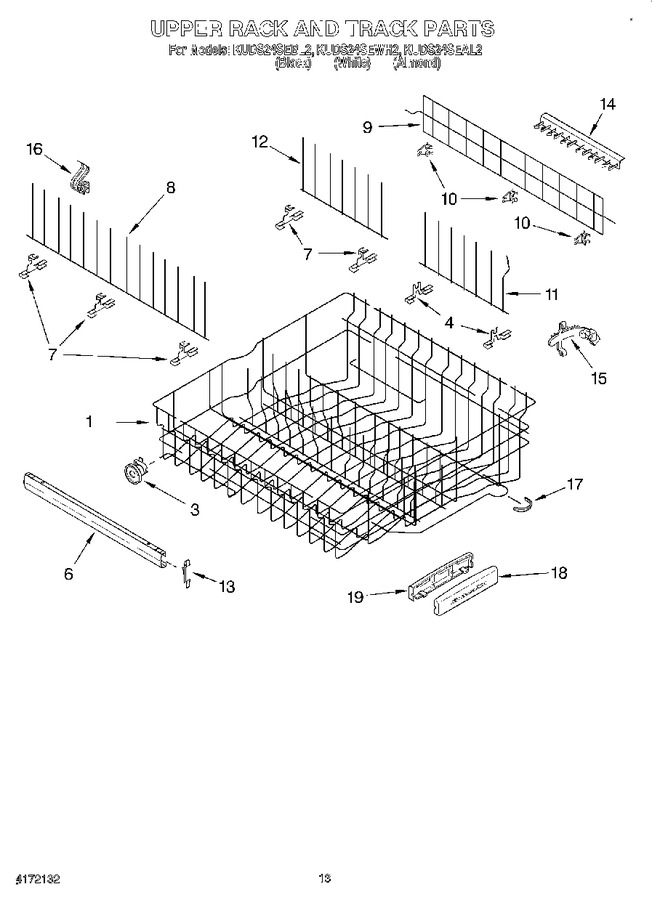

10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10253040		Dishrack, Upper (also Order Item 3)   (Replaces: 3377435)				$ 195.44
3	WP8268807		Wheel & Bearing Assembly (4)   (Replaces: 9742983)			Immediately	$ 13.51
4	WP9743016		Pivot, Upper Tine Row (2)   (Replaces: 9743016)				$ 10.79
6	WP3385089		Track, Rack (2)   (Replaces: 9742998)			Immediately	$ 80.00
7	WP8268816		Clip, Tine Row (5)   (Replaces: 9743017)			Immediately	$ 6.41
8	3377429		Tine Row		Appelez-nous	-
9	3377419		Cupshelf		Appelez-nous	-
10	9743019		Clip, Cupshelf				$ 7.82
11	3377443		Tine Row, Upper (multi Position)				$ 7.99
12	3377439		Tine Row, Upper Mini		Appelez-nous	-
13	9743472		Stop, Track (4)		Appelez-nous	-
14	3377604		Holder, Stemware (2)		Appelez-nous	-
15	9743018		Positioner				$ 5.32
16	3377464		Clip, No Flip (4)				$ 7.84
17	9742999		Protector, Sprayarm Guard		Appelez-nous	-
18	9743010		Handle, Dishrack Front		Appelez-nous	-
19	9743011		Handle, Dishrack Rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
