SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door

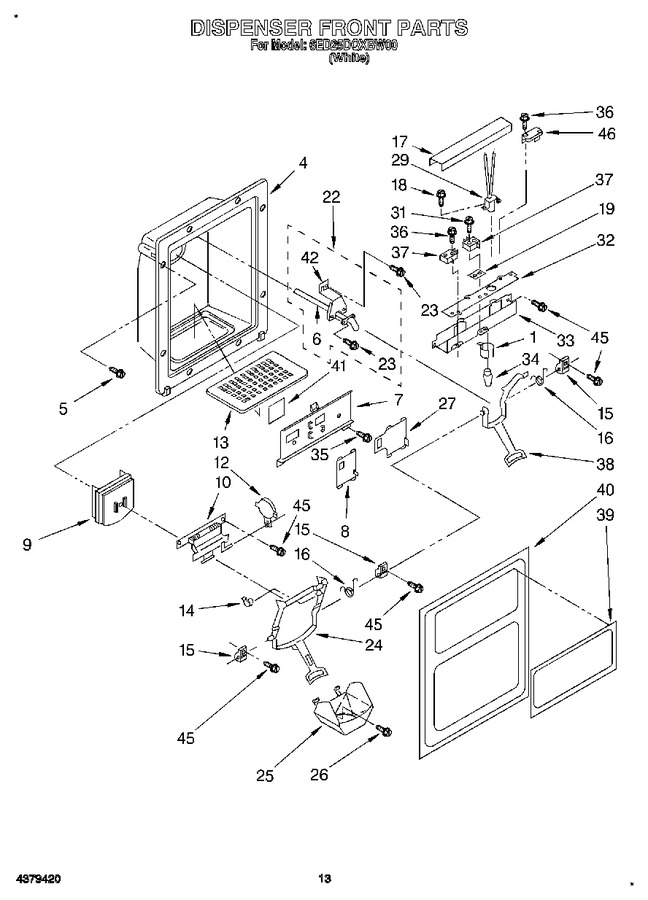

08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129333		Shroud, Bracket		Appelez-nous	-
4	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
6	N/A		Tube, Water (see Item No.22)		Appelez-nous	-
7	2152717		Frame, Slides		Appelez-nous	-
8	2152720		Slide, Cube/crush Switch		Appelez-nous	-
9	WP2180353		Door, Ice   (Replaces: 2167269)			Immediately	$ 24.69
10	2157650		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 213.07
13	1126120		Grille, Overflow		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 10.88
19	625834		Spacer, Switch				$ 7.99
22	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2155020)				$ 276.43
23	WP965173		Screw   (Replaces: 487916)			Immediately	$ 10.72
24	1124718		Lever Assembly, Ice Dispenser		Appelez-nous	-
25	1124730		Guide, Ice				$ 19.06
26	488892		Screw		Appelez-nous	-
27	2152726		Slide, Light Switch		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
31	488361		Screw		Appelez-nous	-
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	989331		Bulb, Light		Appelez-nous	-
35	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
36	489155		Screw,		Appelez-nous	-
37	814037		Switch (3)   (Replaces: 313125)				$ 90.36
38	2159197		Lever Assembly, Water Dispenser		Appelez-nous	-
39	2162923		Plaque, Front Cover		Appelez-nous	-
40	2162926		Front Cover, Housing (includes Item 39)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
42	987049		Bracket, Water		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 7.84
46	WP2162361		Switch-water   (Replaces: 2162361)			Immediately	$ 27.34

    View Diagram in Separate Window       Print Part List
