SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

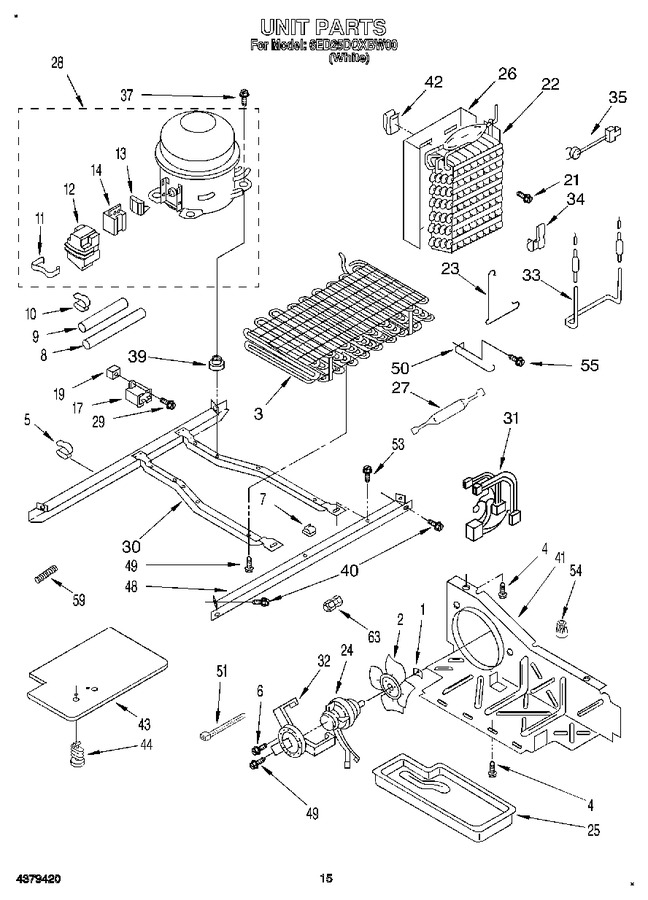

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2164504		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.06
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
10	940073		Clip		Appelez-nous	-
11	938384		Strap		Appelez-nous	-
12	1108115		Cover		Appelez-nous	-
13	2154758		Overload (includes Relay)		Appelez-nous	-
14	N/A		Relay (see Overload)		Appelez-nous	-
17	WP2201147		Capacitor   (Replaces: 2154718)				$ 128.97
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	2164519		Evaporator		Appelez-nous	-
23	2161324		Clamp		Appelez-nous	-
24	8201703		Motor, Fan   (Replaces: 2162066)				$ 354.00
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 52.57
28	876765		Tube Kit			Immediately	$ 86.33
28	2154754		Compressor (includes Items 11, 12, 13, 14 & 17) (also Order)		Appelez-nous	-
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	2167065		Unit, Harness		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162214		Heater, Defrost		Appelez-nous	-
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2161363		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 10.72
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 80.64
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
51	WPW10339879		Strap   (Replaces: 2165001)				$ 7.90
53	WP489427		Screw   (Replaces: 489339)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
