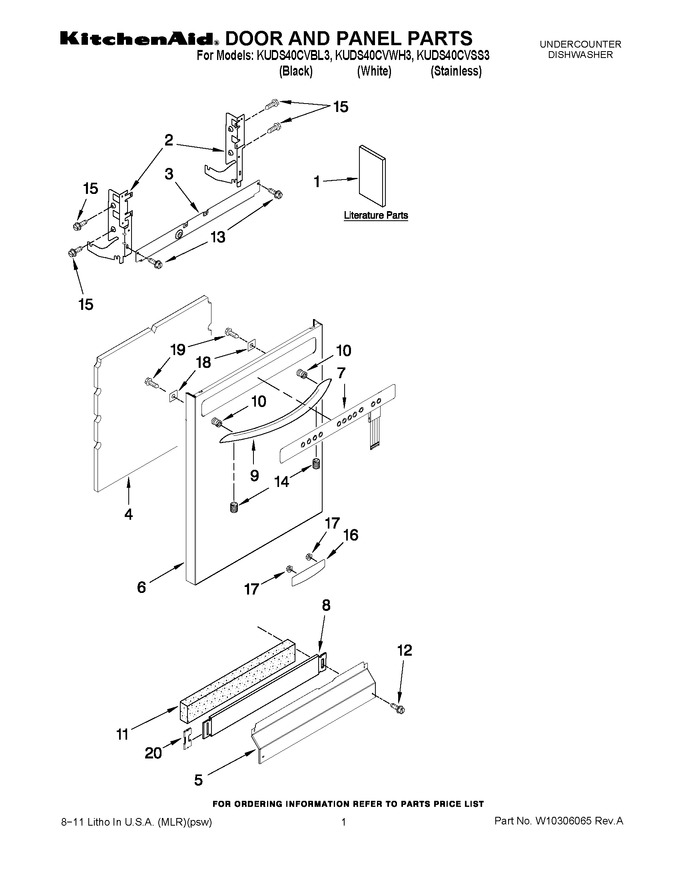

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10205938		Guide, Use & Care Spanish		Appelez-nous	-
1	W10247455		Energy Guide		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10056407		Instructions, Installation		Appelez-nous	-
1	W10205937		Guide, Use & Care English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	W11763736		Access Panel (black)   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	W10077999		Panel, Full Front (includes Items 4, 10, 16 & 17) (black)				$ 167.31
6	W10137621		Panel, Full Front (includes Items 4, 10, 16 & 17) (stainless)				$ 218.59
6	W10078000		Panel, Full Front (includes Items 4, 10, 16 & 17) (white)				$ 190.62
7	W10243196		Bezel (black)				$ 115.55
7	W10243198		Bezel (stainless)				$ 213.69
7	W10243197		Bezel (white)		Appelez-nous	-
8	W10871196		Toe Panel (includes Items 11 & 20) (black)   (Replaces: 8558252)				$ 174.04
8	WPW10586591		Toe Panel (includes Items 11 & 20) (white)   (Replaces: 8558253)				$ 309.39
9	W10257146		Handle (includes Items 14) (black)				$ 42.06
9	W10257147		Handle (includes Items 14) (white)				$ 42.68
9	W10257145		Handle (includes Items 14) (stainless)				$ 55.36
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	W10831329		Insulation, Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10021850		Nameplate (stainless)				$ 62.01
16	W10021870		Nameplate (white)				$ 128.26
16	W10021860		Nameplate (black)				$ 109.94
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
18	W10133538		Plates, Backing		Appelez-nous	-
19	W10123421		Screw				$ 12.83
20	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
