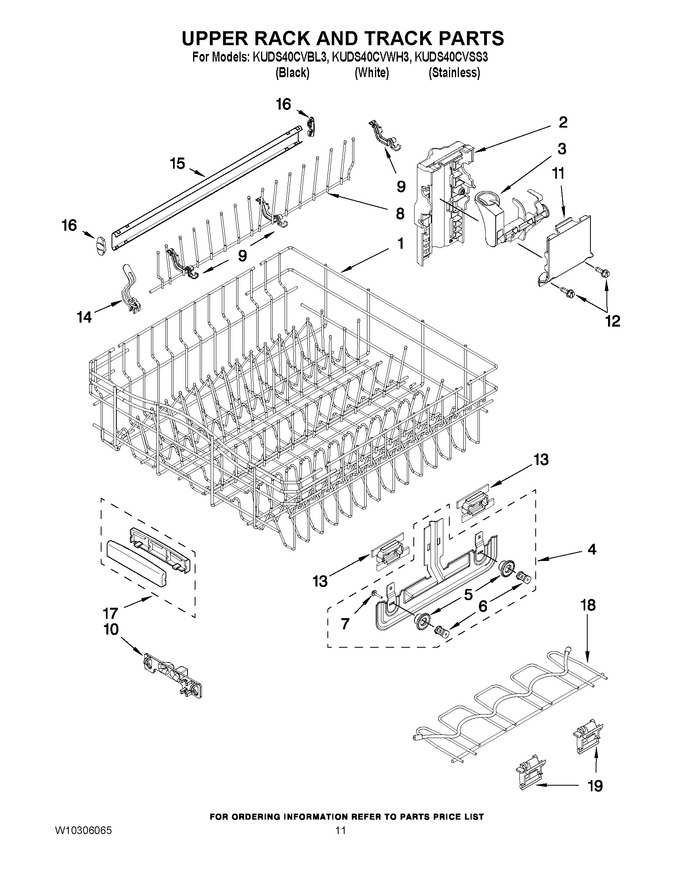

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: W10056270)			Immediately	$ 179.58
2	W10728563		Housing, Adjuster   (Replaces: W10082839)				$ 15.87
3	W10077839		Actuator, Adjuster (left Hand)				$ 38.28
3	W10077838		Actuator, Adjuster (right Hand)				$ 37.92
4	W10728849		Adjuster Assembly   (Replaces: 8268654)				$ 184.96
5	WP3385088		Wheel   (Replaces: 3385088)			Immediately	$ 12.40
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
7	8281156		Screw				$ 5.83
8	W10727426		Tine Row   (Replaces: 8562030)			Immediately	$ 85.10
9	WPW10082853		Clip, Pivot   (Replaces: W10082853)			Immediately	$ 5.40
10	WP8539102		Positioner, Dual   (Replaces: 8539102)				$ 103.88
11	W10728561		Cover, Adjuster   (Replaces: W10082840)				$ 20.53
12	WP9741232		Retainer   (Replaces: 9741232)			Immediately	$ 5.07
13	W10728566		Positioner, Arm   (Replaces: W10082834)			Immediately	$ 8.22
14	WPW10077844		Clip, No-flip   (Replaces: W10077844)			Immediately	$ 11.45
15	WP3385089		Track, Assembly   (Replaces: 3385089)			Immediately	$ 80.00
16	WP8565925		Stop, Track   (Replaces: W10082860)			Immediately	$ 6.87
17	8539110		Handle, Dishrack		Appelez-nous	-
18	W11125975		Cupshelf   (Replaces: 8562029)				$ 140.19
19	8562026		Clip, Cupshelf				$ 101.18

    View Diagram in Separate Window       Print Part List
