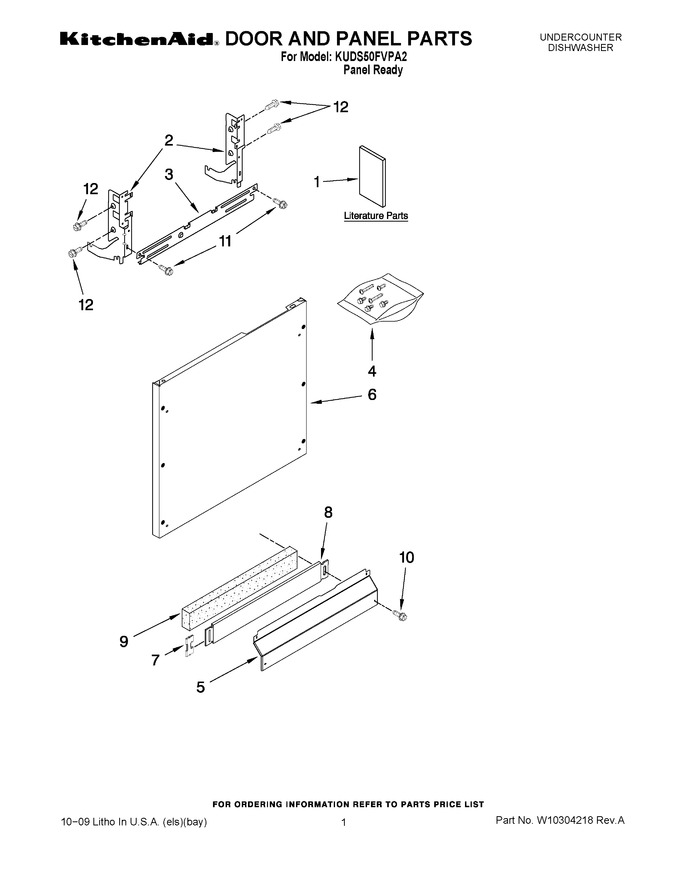

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10205938 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10056407 | Instructions,installation |
|
- | |||||
| 1 | W10247455 | Energy Guide |
|
- | |||||
| 1 | W10205937 | Guide, Use & Care English & French |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 128.02 | ||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | 8531882 | Screws, Door Asm. |
|
$ 15.36 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 38.03 | ||||
| 6 | W11113792 | Panel, Front (black) (Replaces: 8535133) |
|
Immediately | $ 336.08 | ||||
| 7 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 10.09 | |||||
| 8 | W10871196 | Toe Panel (includes Items 7 & 9) (black) (Replaces: 8558252) |
|
$ 156.64 | |||||
| 9 | W10831329 | Insulation Toe Panel (Replaces: 8268581) |
|
Immediately | $ 38.97 | ||||
| 10 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 7.36 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 |
