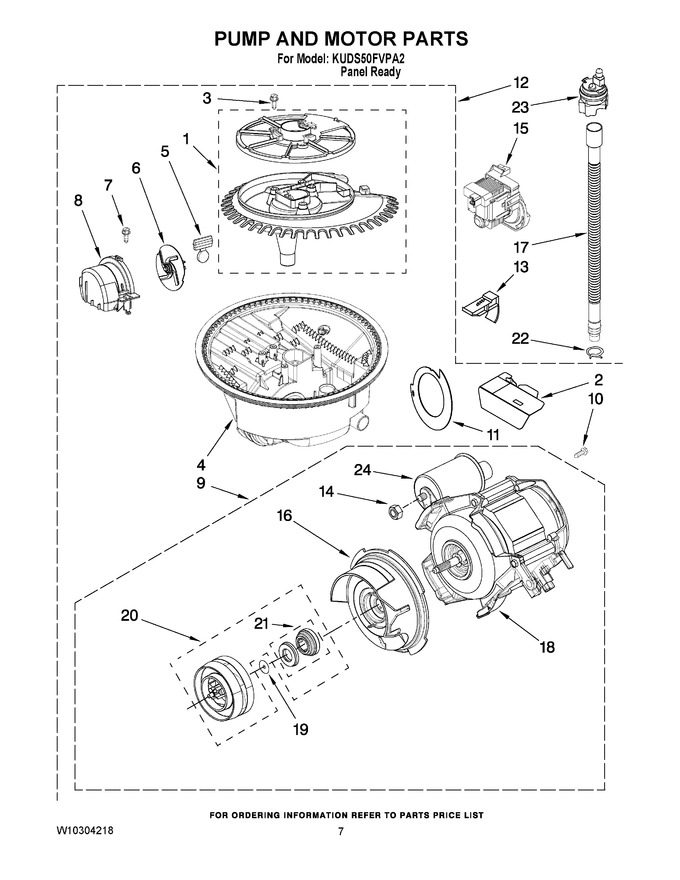

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8193918 | Accumulator Assy (Replaces: 8534952) |
|
Immediately | $ 160.18 | ||||
| 2 | 8283527 | Shield |
|
$ 158.88 | |||||
| 3 | 3400069 | Screw |
|
- | |||||
| 4 | WP8572618 | Sump With Seal (Replaces: 8572618) |
|
$ 296.33 | |||||
| 5 | WP8268375 | Check Valve, Sump (Replaces: 8268375) |
|
Immediately | $ 74.12 | ||||
| 6 | W10083957V | Chopper Assembly (Replaces: W10083957) |
|
Immediately | $ 55.90 | ||||
| 7 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 8 | WP8531857 | Protector, Inlet (Replaces: 8531857) |
|
$ 154.02 | |||||
| 9 | WPW10757217 | Motor Assembly (Replaces: W10239404) |
|
Immediately | $ 285.78 | ||||
| 10 | 3400217 | Screw |
|
$ 6.71 | |||||
| 11 | W10084567 | Screen, Separation |
|
$ 87.61 | |||||
| 12 | WPW10780877 | Sump & Motor Assembly (Replaces: W10237169) |
|
Immediately | $ 365.00 | ||||
| 13 | WPW10300599 | Tab, Sump (Replaces: 8269524) |
|
$ 81.12 | |||||
| 14 | 8533949 | Nut |
|
$ 78.10 | |||||
| 15 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 87.71 | ||||
| 16 | W11622922 | Volute W/seal Also Order Items 19 & 21) (Replaces: W10142656) |
|
$ 21.76 | |||||
| 17 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 26.14 | ||||
| 18 | WPW10239401 | Motor (Replaces: W10239401) |
|
$ 294.75 | |||||
| 19 | WP8531018 | Washer (Replaces: 8531018) |
|
$ 7.88 | |||||
| 20 | 8193951A | Impeller Kit (Replaces: 8531017) |
|
Immediately | $ 142.18 | ||||
| 21 | 8193951A | Face Seal Assembly (also Order & Item 19) (Replaces: 8268403) |
|
Immediately | $ 142.18 | ||||
| 22 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 23 | WPW10705575 | Optical Water Indicator (Replaces: W10134017) |
|
Immediately | $ 39.43 | ||||
| 24 | WPW10334457 | Capacitor (Replaces: W10216724) |
|
$ 148.39 |
