SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

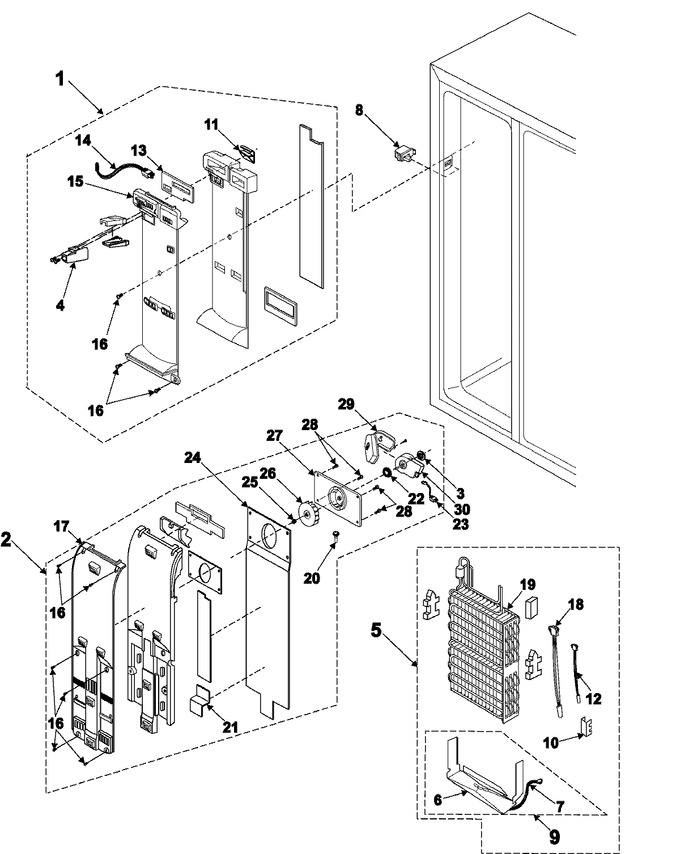

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02006A		Assy Cover-multi Fre,disp;bby,		Appelez-nous	-
2	DA97-00466V		Assy Cover-evap Fre				$ 141.10
3	DA63-01808A		Grommet-motor(bldc)			Immediately	$ 6.19
4	DA63-02179A		Cover-multi Fre,sub;bby,abs,t2		Appelez-nous	-
5	555555		Evap Assy   (Replaces: DA96-00021N)				$ 168.82
6	DA61-00477A		Plate-drain,fre				$ 50.88
7	DA47-00090C		Heater Drain-fre				$ 82.03
8	DA34-10120E		Switch Door-f;-,slide,-,-,250v			Immediately	$ 44.16
9	DA97-00111C		Drain, Heater				$ 90.31
10	DA61-00827A		Plate-evap Fre,sub		Appelez-nous	-
11	DA61-00495B		Guide-multi Fre,upp;bby,abs,t1		Appelez-nous	-
12	DA32-10105R		Sensor Assy			Immediately	$ 38.19
13	DA62-00168A		Seal-sensor Fre,disp		Appelez-nous	-
14	DA32-10109W		Sensor Assembly			Immediately	$ 28.25
15	DA63-02181A		Cover-multi Fre,disp;bby,pp,t2		Appelez-nous	-
16	WP1163283		Screw-tapping   (Replaces: 6002-000473)				$ 7.55
17	DA63-00797D		Cover Evap-fre;a-top,exp,cool-				$ 75.56
18	DA47-10160H		Thermo Bimetal				$ 79.38
19	DA59-00233H		Evap Fre		Appelez-nous	-
20	DA63-40167A		Grommet-cover Chil				$ 2.78
21	DA61-00412A		Guide Air-fre		Appelez-nous	-
22	DA63-01146A		Grommet-motor				$ 7.72
23	DA39-00060K		W/harness Motor				$ 131.50
24	DA62-00077C		Seal-duct Fre,re		Appelez-nous	-
25	DA61-20128A		Spring-fan				$ 0.94
26	DA31-00053A		Fan-backward				$ 20.75
27	DA61-00417A		Case Motor				$ 21.56
28	6002-001197		Screw-tapping;th,+,1,m4,l16,sn		Appelez-nous	-
29	DA63-01809A		Cover Motor-bldc				$ 13.47
30	DA31-00020E		Motor Dc-bldc,drep3020la,fre				$ 145.86

    View Diagram in Separate Window       Print Part List
