01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

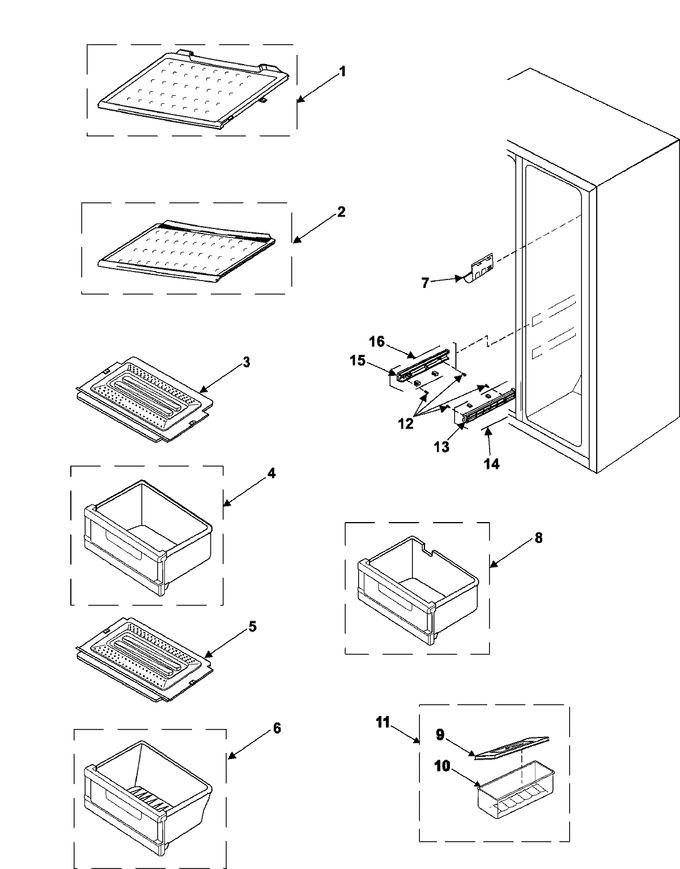

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00533F		Shelf Ref-up(650);best-buy,pp,				$ 110.50
2	DA67-00534K		Shelf Ref-low(650);a-top,pp,ex		Appelez-nous	-
3	DA63-00864C		Cover-veg Up(650);a-top,hips,c		Appelez-nous	-
4	DA97-00144H		Assy-case Veg,up				$ 116.66
5	DA63-00865C		Cover-veg Low(650);a-top,hips,				$ 61.59
6	DA97-00148H		Assy-case Veg,low				$ 115.24
7	DA67-00145B		Shelf-wine;a-top,hips,cool-whi		Appelez-nous	-
8	DA97-00174E		Assy-tray Chill				$ 118.36
9	DA63-10363A		Cover-egg		Appelez-nous	-
10	DA67-10144A		Case-egg		Appelez-nous	-
11	DA97-00169A		Assy-case Egg		Appelez-nous	-
12	DA63-00202B		Grommet-rail				$ 2.26
13	DA61-00295B		Rail-chilled R(a-top);hips,a-t		Appelez-nous	-
14	DA97-00159C		Assy Rail-chilled,r;a-top,cool				$ 12.32
15	DA61-00294B		Rail-chilled L(a-top);hips,a-t		Appelez-nous	-
16	DA97-00173C		Assy Rail-chilled,l;a-top,cool		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
