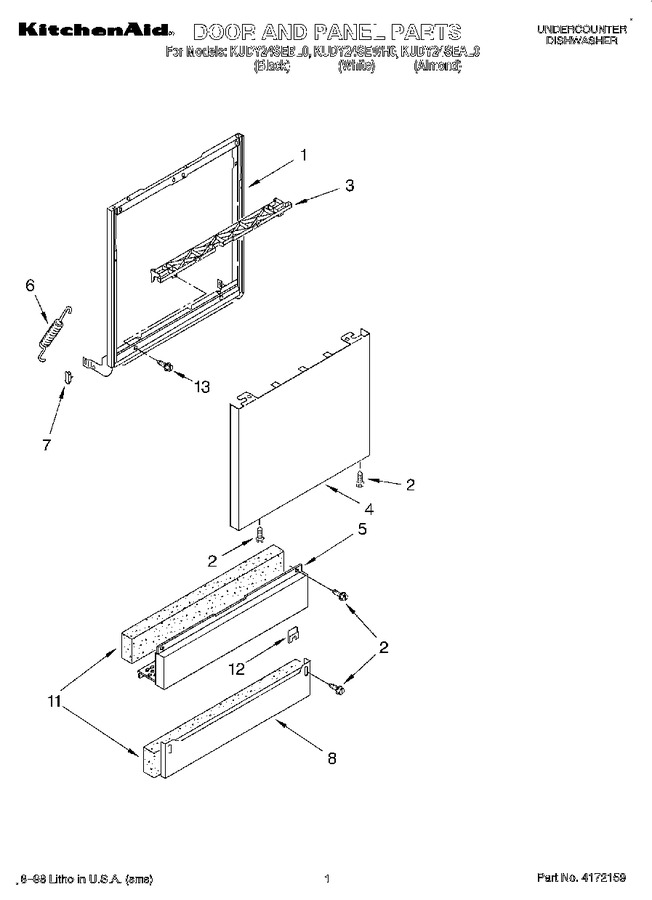

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743028		Door Frame				$ 62.19
2	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
3	9742964		Stiffener, Door		Appelez-nous	-
4	3379377		Panel Front (almond Model)		Appelez-nous	-
4	3379375		Panel Front (black)				$ 115.07
4	3379376		Panel Front (white)				$ 116.81
5	3379919		Access Panel & Clip Assembly (includes Items 11 & 12) (almond)		Appelez-nous	-
5	3379918		Access Panel & Clip Assembly (includes Items 11 & 12) (white)				$ 21.91
5	3379917		Access Panel & Clip Assembly (includes Items 11 & 12) (black)		Appelez-nous	-
6	WP9743986		Spring, Door (2)   (Replaces: 3379643)			Immediately	$ 29.69
7	WP3373234		Bushing, Spring Door (2)   (Replaces: 3373234)				$ 11.01
8	3368942		Toe Panel (includes Item 11) (black)		Appelez-nous	-
8	9742861		Toe Panel (includes Item 11) (white)		Appelez-nous	-
8	9742862		Toe Panel (includes Item 11) (almond)		Appelez-nous	-
11	9743825		Insulation		Appelez-nous	-
12	3378123		Clip, Grounding				$ 7.79
13	WP308685		Screw (2)   (Replaces: 3367670)			Immediately	$ 7.87
