SELECT A DIAGRAM

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm & Strainer


05 - Heater


06 - Fill & Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional

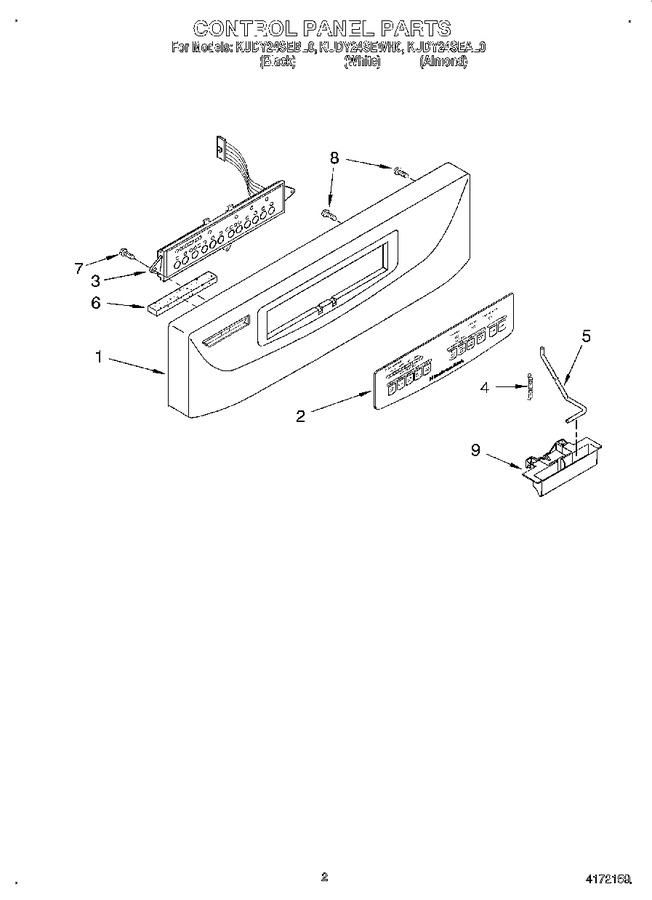

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743591		Console (also Order Item 2) (black)				$ 107.51
1	9743592		Console (also Order Item No.2) (white Model)				$ 108.55
1	9743593		Console (also Order Item No.2) (almond Model)				$ 106.28
2	9743968		Insert (almond)		Appelez-nous	-
2	9743966		Insert (black)		Appelez-nous	-
2	9743967		Insert (white)		Appelez-nous	-
3	9743246		Switch, Panel (user Interface)		Appelez-nous	-
4	9743573		Spring, Handle				$ 5.83
5	9743572		Link, Handle				$ 6.67
6	9743412		Sponge, Vent		Appelez-nous	-
7	WP304231		Screw (3)   (Replaces: 304231)			Immediately	$ 8.14
8	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP9743903		Handle, Latch (black)   (Replaces: 9743903)				$ 146.61
9	WP9743903		Handle, Latch (white)   (Replaces: 9743904)				$ 146.61
9	WP9743903		Handle, Latch (almond Model)   (Replaces: 9743905)				$ 146.61

    View Diagram in Separate Window       Print Part List
