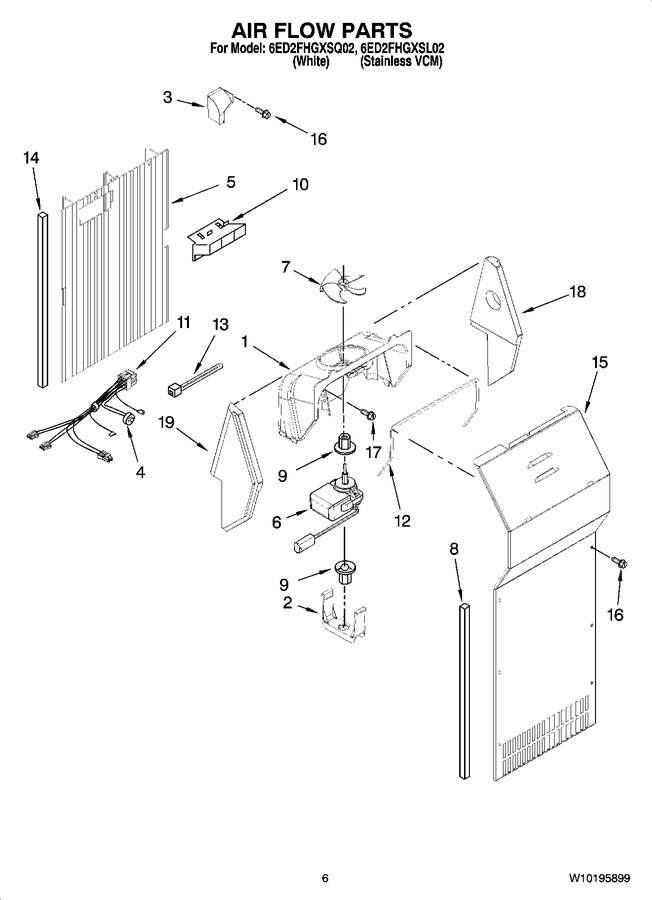

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 323.27
2	2155590		Retainer Fan Motor				$ 5.83
3	W10803597		Air Scoop   (Replaces: 2161229)				$ 82.02
4	WPW10225581		Bi-metal, Defrost   (Replaces: 2319914)			Immediately	$ 50.77
5	2203591		Air Duct Freezer		Appelez-nous	-
6	WP2321275		Fan Motor   (Replaces: 2321275)				$ 303.64
7	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
8	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 82.80
9	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
10	2182146		Duct, Icemaker				$ 88.84
11	2310314		Harness, Fan Evaporator (includes 4)		Appelez-nous	-
12	WP2155789		Gasket, Fan Scroll   (Replaces: 2155788)				$ 7.79
13	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
14	4388500		Gasket (2)   (Replaces: 2203875)				$ 90.39
15	2203840		Cover, Evaporator (includes 8)		Appelez-nous	-
16	4389654		Screw (6)   (Replaces: 8281159)				$ 13.89
17	WP489478		Screw   (Replaces: 489478)				$ 7.75
18	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
19	4388358		Support, L.s   (Replaces: 2203596)				$ 31.16
