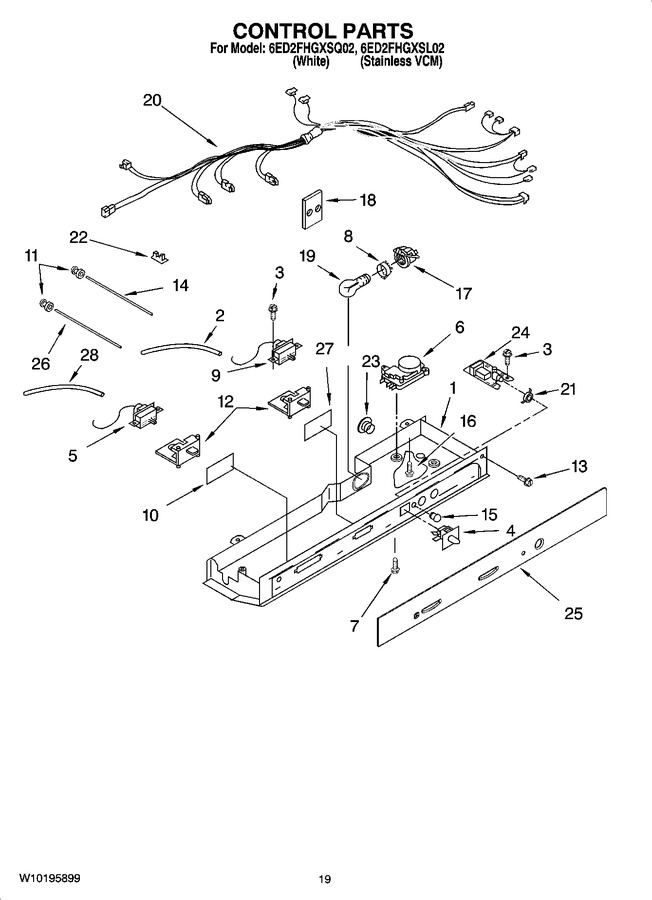

12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2313410)			Immediately	$ 40.40
5	2187158		Thermostat (fc)				$ 90.49
6	WP2188379		Timer, Defrost   (Replaces: 2188380)				$ 193.40
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 82.61
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 248.67
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
15	2200096		Cover, Indicator Light Lens				$ 64.10
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2317419)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	2310066		Control Box Harness		Appelez-nous	-
21	2200097		Retainer, Light Lens		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	940014		Hole Plug				$ 18.33
24	2205787		P.c. Board Filter Indicator		Appelez-nous	-
25	W10124266		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
28	WP2196003		Tube, Barrier Thermostat   (Replaces: 2196003)				$ 7.95
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 82.31
	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
	799340		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	8171358		Paint, Pressurized Spray (12 Oz.) (graphite)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 89.66
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
