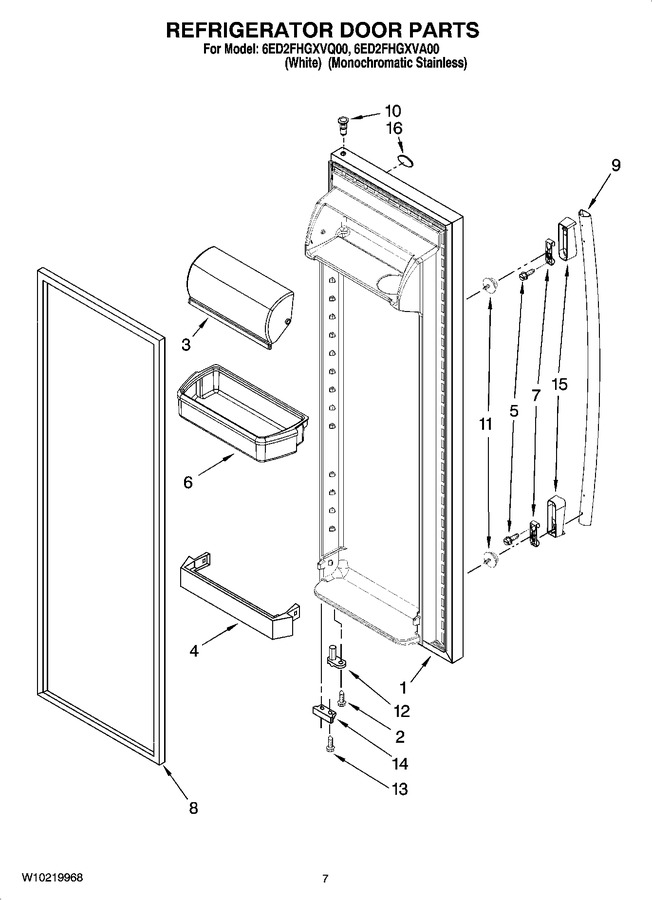

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309622LA		Refrigerator Door (includes Item 8) (satina/apollo)		Appelez-nous	-
1	2325248W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 8.78
6	2223239		Shelf Bin (3)		Appelez-nous	-
7	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
8	2159073		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309600)				$ 333.19
8	W10136732		Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327161)			Immediately	$ 361.20
9	WPW10127761K		Handle (white)   (Replaces: W10127765)				$ 196.00
9	W10273555		Handle (satina)   (Replaces: W10127768)				$ 197.28
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
11	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 42.79
15	W10127769		Endcap (white)		Appelez-nous	-
15	W10127772		End Cap (apollo Grey)				$ 49.75
16	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
