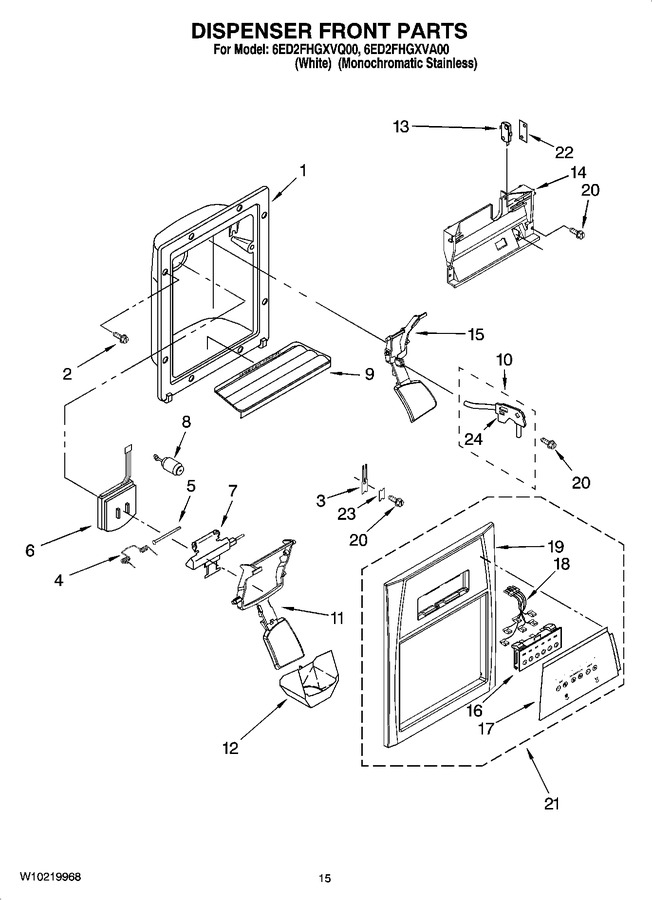

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 72.17
9	W10171992		Grille, Overflow (nickel One)				$ 93.12
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 140.84
11	W10155161		Lever, Ice Dispenser (apollo Grey)				$ 104.72
11	WPW10152853		Lever, Ice Dispenser (white)   (Replaces: W10152853)				$ 111.84
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 28.71
14	W10167536		Bracket, Control		Appelez-nous	-
15	W10155162		Lever, Water Dispenser (apollo Grey)				$ 68.97
15	WPW10152858		Lever, Water Dispenser (white)   (Replaces: W10152858)			Immediately	$ 109.83
20	WP3400906		Screw   (Replaces: 489000)				$ 9.05
21	W10201249		Front Cover Assembly (includes Items 16, 17, 18 & 19) (white)		Appelez-nous	-
21	W10201251		Front Cover Assembly (includes Items 16, 17, 18 & 19) (nickel One)		Appelez-nous	-
22	625834		Spacer, Switch (2)				$ 7.99
23	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
24	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 16.38
