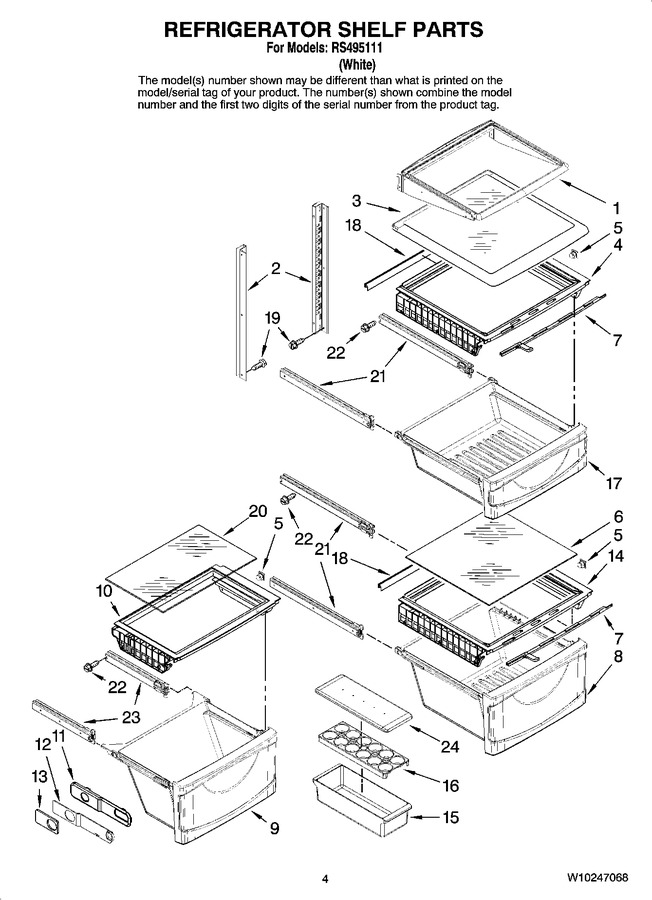

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004527		Shelf, Glide (3)		Appelez-nous	-
2	67003839		Rail (2)		Appelez-nous	-
3	67006053		Shelf, Crisper Top				$ 84.45
4	67004140		Frame, Crisper		Appelez-nous	-
5	WP12603701		Support, Crisper Frame (12)   (Replaces: 12603701)				$ 10.83
6	67004076		Glass, Crisper Shelf		Appelez-nous	-
7	67004885		Slide, Control		Appelez-nous	-
8	67006054		Pan, Crisper (large)		Appelez-nous	-
9	67005639		Pan, Meat		Appelez-nous	-
10	67004247		Frame, Meat Shelf		Appelez-nous	-
11	12774104SP		Housing, Control		Appelez-nous	-
12	67006056		Slide, Temp Cont.		Appelez-nous	-
13	67004177		Gasket, Temp Cont.		Appelez-nous	-
14	WP67004531		Frame, Crisper (large)   (Replaces: 67004531)				$ 220.14
15	10423131		Bin, Utility				$ 31.13
16	10436506S		Tray, Egg		Appelez-nous	-
17	12772908		Pan, Crisper (small)		Appelez-nous	-
18	67004249		Seal, Crisper Frame (rear)		Appelez-nous	-
19	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
20	67004132		Glass, Meat Shelf		Appelez-nous	-
21	67005620		Glide, Crisper (incl. Bumper)				$ 321.73
22	67006964		Screw, Glide				$ 5.71
23	67005898		Glide, Meat (incl. Bumper)				$ 39.39
24	10436404S		Lid-utility		Appelez-nous	-
