01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

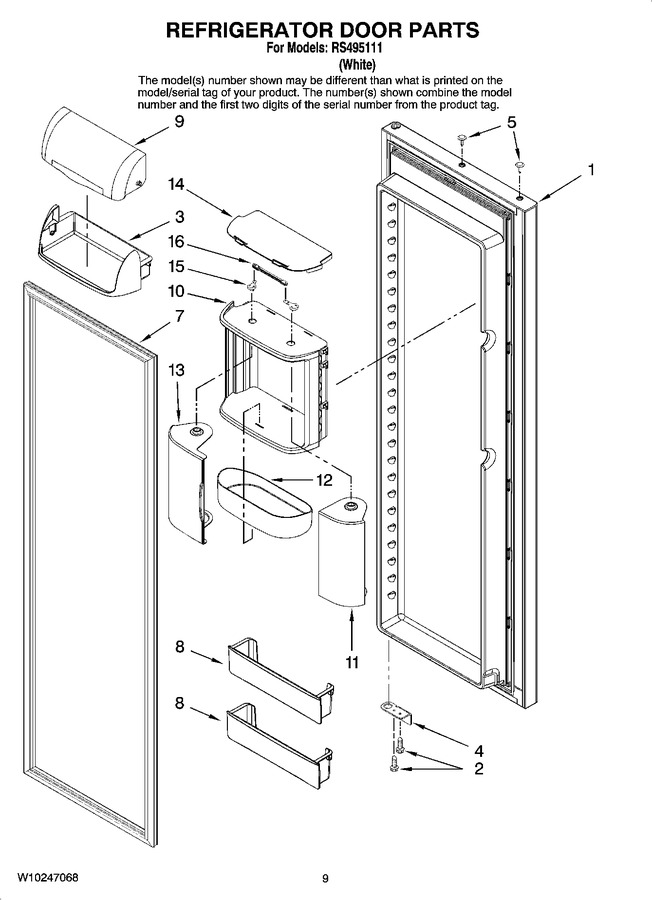

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12818240WQ		Door, Refrigerator (white)		Appelez-nous	-
2	R9800670		Screw (2)   (Replaces: M0223230)				$ 9.52
3	67002304		Tray, Dairy		Appelez-nous	-
4	67007017		Stop, Door (black)		Appelez-nous	-
5	M0311604		Plug, Button (2) (black)		Appelez-nous	-
7	W10133828		Gasket, Door (white)				$ 165.36
8	67004314		Bucket, Door (2)		Appelez-nous	-
9	67002957		Door, Dairy		Appelez-nous	-
10	67002409		Frame, Chiller (mini)		Appelez-nous	-
10	67002294		Frame, Chiller (large)		Appelez-nous	-
11	67002297		Door Chiller (rt) (large)		Appelez-nous	-
11	67002411		Door Chiller (rt) (mini)		Appelez-nous	-
12	67002296		Tray, Chiller (2)				$ 26.66
13	67003137		Door Chiller (lt) (mini)		Appelez-nous	-
13	67003136		Door Chiller (lt) (large)		Appelez-nous	-
14	67002291		Cover, Chiller (2)		Appelez-nous	-
15	67002293		Linkage, Chiller (4)				$ 11.76
16	67002292		Linkage, Center Chiller (2)		Appelez-nous	-
