SELECT A DIAGRAM

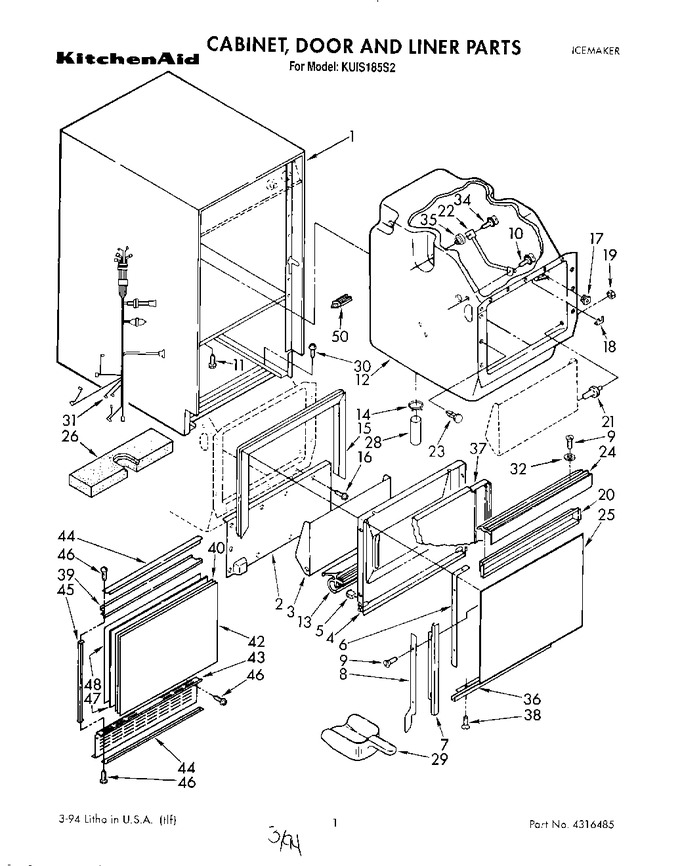

01 - Cabinet, Door And Liner, Literature


02 - Evaporator, Grid And Pump


03 - Pump


04 - Unit


05 - Escutcheon And Control


06 - Drain Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	758908		Shell		Appelez-nous	-
2	758652		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758655		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	758748		Trim, Door (2)		Appelez-nous	-
8	593184		Rail, R.s.		Appelez-nous	-
8	593185		Rail, L.s.		Appelez-nous	-
9	681459		Screw, 8-32 X 1/2 (6)		Appelez-nous	-
10	680930		Thumbscrew		Appelez-nous	-
11	681036		Screw, Ground		Appelez-nous	-
12	756350		Liner (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
13	758169		Gasket, Bottom		Appelez-nous	-
14	596023		Clamp (2)		Appelez-nous	-
15	758921		Gasket		Appelez-nous	-
16	WP965173		Screw, 8-32 X 3/8   (Replaces: 595431)			Immediately	$ 11.87
17	596807		Grommet		Appelez-nous	-
18	758492		Washer		Appelez-nous	-
19	681542		Nut, 1/4 Hex		Appelez-nous	-
20	758752		Pocket, Handle		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596812		Clip, Panel (12)		Appelez-nous	-
24	758622		Handle, Recessed		Appelez-nous	-
25	758745		Panel, Exterior (almond & Harvest Gold)		Appelez-nous	-
25	758746		Panel, Exterior (white & Black)		Appelez-nous	-
26	756891		Insulation, Bottom, Foam		Appelez-nous	-
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
31	758838		Harness, Cabinet		Appelez-nous	-
32	681613		Washer, Plastic		Appelez-nous	-
34	681419		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut (3)		Appelez-nous	-
36	758400		Trim, Door (lower)		Appelez-nous	-
37	758608		Insulation, Door		Appelez-nous	-
38	681196		Screw		Appelez-nous	-
39	758718		Support, Front Panel		Appelez-nous	-
40	758720		White & Black Panel		Appelez-nous	-
42	758722		Almond & Harvest Gold Panel		Appelez-nous	-
43	758769		Grille Font, Panel		Appelez-nous	-
44	758717		Trim Front, Panel (top & Bottom)		Appelez-nous	-
45	758714		Trim Front, Panel (side)		Appelez-nous	-
46	WP488729		Screw (4)   (Replaces: 489196)			Immediately	$ 8.28
47	758770		Filler, Panel		Appelez-nous	-
48	758771		Panel, Inner		Appelez-nous	-
50	WP503695		Cork Sealer   (Replaces: 503695)				$ 123.84
50	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
50	702354		Ice Deflector Kit		Appelez-nous	-
50	978026		Valve, Access (5/16``)			Immediately	$ 134.49
50	876764		Valve, Access(3/16``)			Immediately	$ 95.92
50	758840		Model No. Ekdp1		Appelez-nous	-
50	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
50	758844		Retainer, Wire		Appelez-nous	-
50	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 94.14
50	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
50	758469		Grid Assembly Complete (standard Cube)		Appelez-nous	-
50	758470		Grid Assembly Complete (cubelets 3/4 X 3/4)		Appelez-nous	-
50	876649		Leg Kit		Appelez-nous	-
	LIT758842		Instructions, Installation		Appelez-nous	-
	LIT758846		Wiring Diagram		Appelez-nous	-
	LIT758491		Guide, Use And Care		Appelez-nous	-
	LIT758860		Sheet, Tech		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
