Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 681036 Screw, Appelez-nous -
2 758414 Transformer Appelez-nous -
3 2165530 Escutcheon, Panel Appelez-nous -
4 593139 Switch, Service Appelez-nous -
5 2172846 Bracket, Control Appelez-nous -
6 WP965173 Screw, 8-15 X 3/8   (Replaces: 595431) In-Stock Immediately $ 11.87

7 WP486579 Screw, 8-32 X 1/4   (Replaces: 595005) Special Order $ 7.89

9 758978 Escutcheon Appelez-nous -
10 758726 Decal, Escutcheon Appelez-nous -
11 2157321 Thermostat, Evaporator Appelez-nous -
12 2165478 Thermostat, Bin Control Appelez-nous -
13 2172848 Switch, Light (magnetic) Appelez-nous -
14 681245 Washer, Appelez-nous -
19 758567 Harness, Grid Appelez-nous -
20 758711 Knob (2) Appelez-nous -
21 759007 Latch Appelez-nous -
22 680964 Screw, 8-32 X 1/2 Appelez-nous -
24 2165572 Nameplate Appelez-nous -
25 758489 Shield Clamp Appelez-nous -
26 758488 Harness Clamp Appelez-nous -
27 758490 Bracket Clamp Appelez-nous -
28 745362 Light Bulb Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

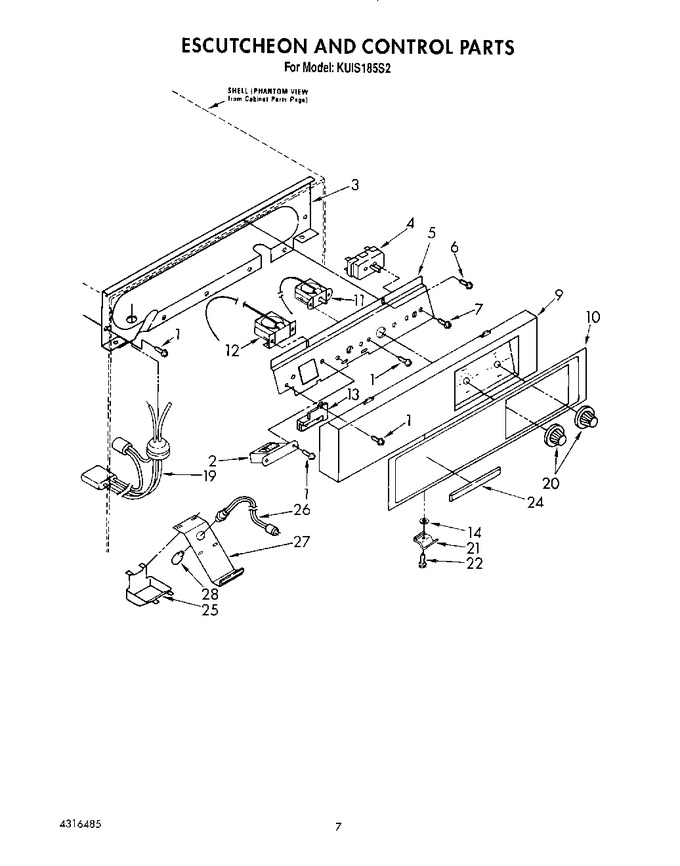

Diagram for KUIS185S2
