SELECT A DIAGRAM

01 - Cabinet Parts

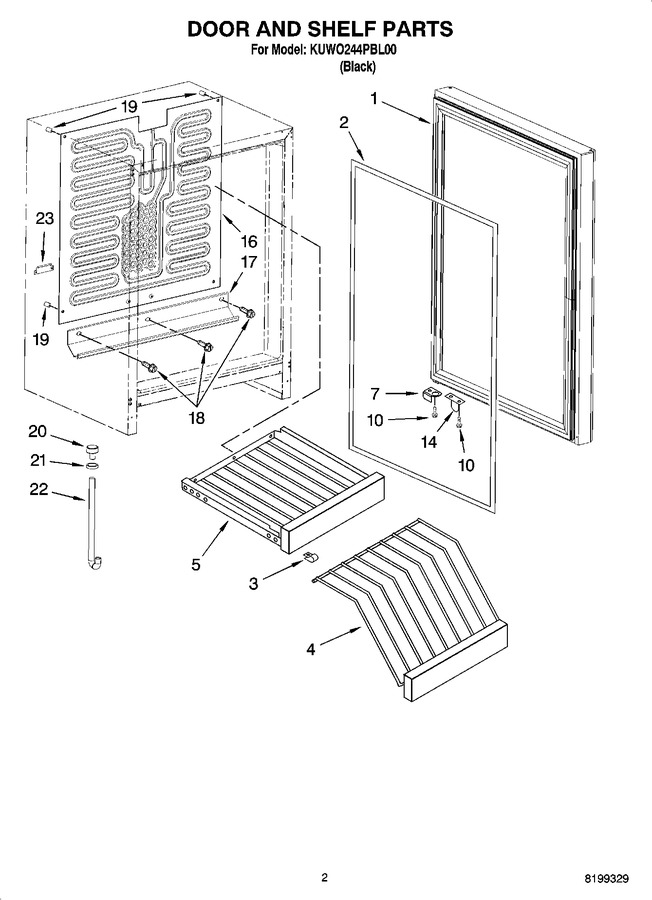

02 - Door And Shelf Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344732		Door Assembly (includes Gasket)		Appelez-nous	-
2	4344696		Gasket, Door		Appelez-nous	-
3	4344660		Clip		Appelez-nous	-
4	4344692		Wine Display Rack		Appelez-nous	-
5	4344686		Shelf, Wine (5)		Appelez-nous	-
7	4344733		Plate, Pivot		Appelez-nous	-
10	WP8281227		Screw   (Replaces: 4344710)				$ 10.96
14	4344709		Bracket, Door Switch		Appelez-nous	-
16	4344679		Evaporator		Appelez-nous	-
17	4344718		Channel, Drain		Appelez-nous	-
18	4344719		Rivet, Push-in		Appelez-nous	-
19	4344720		Spacer		Appelez-nous	-
20	4344611		Funnel, Drain		Appelez-nous	-
21	4344722		Washer, Foam		Appelez-nous	-
22	4344723		Tube, Drain		Appelez-nous	-
23	4344724		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
