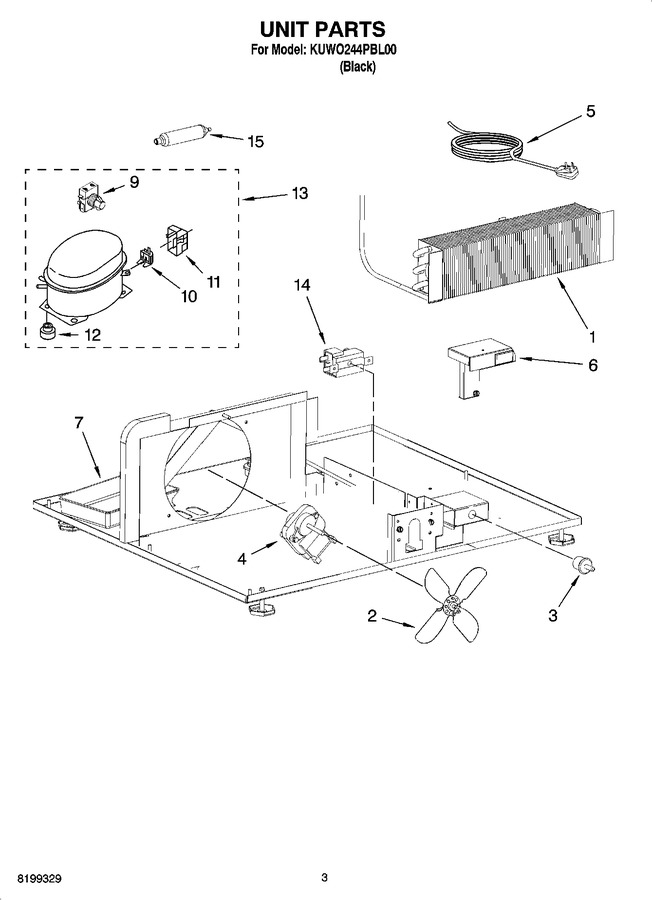

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344688 | Condenser |
|
- | |||||
| 2 | 4344632 | Blade, Fan |
|
- | |||||
| 3 | 4344607 | Switch, Door |
|
- | |||||
| 4 | 4344631 | Motor, Fan |
|
$ 124.77 | |||||
| 5 | 4344689 | Cord, Power |
|
- | |||||
| 6 | 4344675 | Bracket, Switch |
|
- | |||||
| 7 | 4344655 | Pan, Drain |
|
- | |||||
| 9 | 4344638 | Relay, Starting |
|
$ 58.66 | |||||
| 10 | 4344687 | Overload |
|
- | |||||
| 11 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 95.29 | |||||
| 12 | WP2163786 | Grommet (4) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 13 | 4344621 | Compressor (includes Items 9, 10, 11 & 12) |
|
- | |||||
| 14 | WP4344659 | Thermostat (Replaces: 4344690) |
|
$ 384.20 | |||||
| 15 | 4344630 | Drier Assembly |
|
- |
