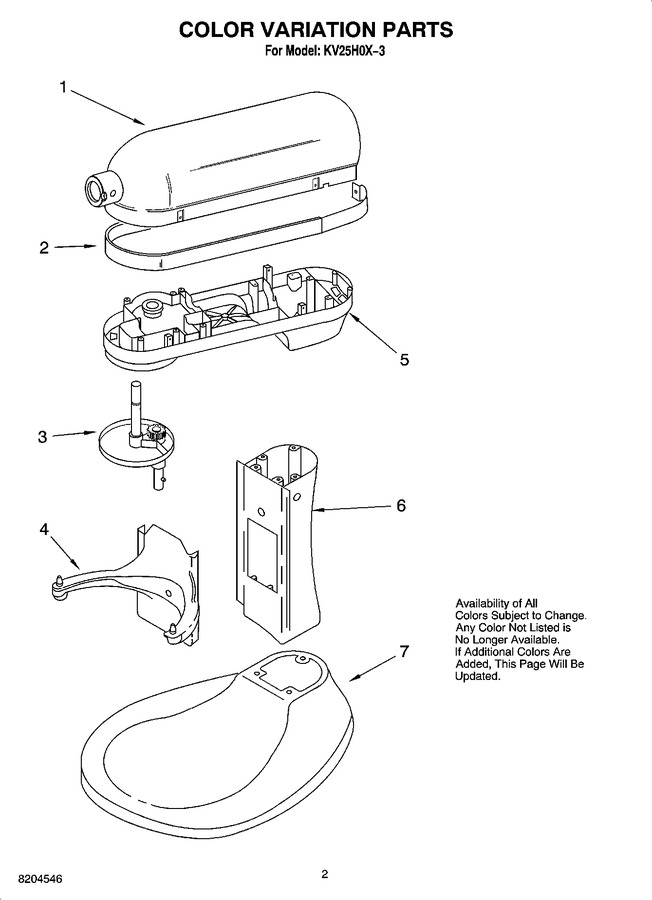

01 - Color Variation Parts
02 - Base And Pedestal Unit
03 - Case, Gearing, Planetary Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 1 | 9703433 | Motor Housing (metallic Chrome) |
|
$ 90.15 | |||||
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | 9708008 | Trim Band (silver & Gray) |
|
- | |||||
| 3 | WP9708172 | Planetary (white) (Replaces: 9706042) |
|
Immediately | $ 73.84 | ||||
| 3 | WP9708175 | Planetary (metallic Chrome) (Replaces: 9706303) |
|
Immediately | $ 70.69 | ||||
| 3 | WP9708176 | Planetary (onyx Black) (Replaces: 9706308) |
|
Immediately | $ 73.38 | ||||
| 3 | WP9708180 | Planetary (empire Red) (Replaces: 9706328) |
|
Immediately | $ 71.94 | ||||
| 4 | 9703674 | Bowl Support-white |
|
$ 74.91 | |||||
| 4 | 9705356 | Bowl Support-onyx Black |
|
- | |||||
| 4 | 9703397 | Bowl Support-metallic Chrome |
|
$ 76.42 | |||||
| 4 | 9705360 | Bowl Support-empire Red |
|
- | |||||
| 5 | 9706047 | Lower Gearcase (white) |
|
$ 41.51 | |||||
| 5 | 9706306 | Lower Gearcase (metallic Chrome) |
|
$ 82.38 | |||||
| 5 | 9706311 | Lower Gearcase (onyx Black) |
|
$ 92.72 | |||||
| 5 | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 6 | 9703673 | Column-white |
|
$ 81.26 | |||||
| 6 | 9703349 | Column-metallic Chrome |
|
- | |||||
| 6 | 9705320 | Column-onyx Black |
|
- | |||||
| 6 | 9705324 | Column-empire Red |
|
- | |||||
| 7 | 9703690 | Base And Foot Assembly (white) |
|
- | |||||
| 7 | 9703346 | Base And Foot Assembly (metallic Chrome) |
|
- | |||||
| 7 | 9705344 | Base And Foot Assembly (onyx Black) |
|
- | |||||
| 7 | 9705348 | Base And Foot Assembly (empire Red) |
|
- |
