SELECT A DIAGRAM
01 - Color Variation Parts

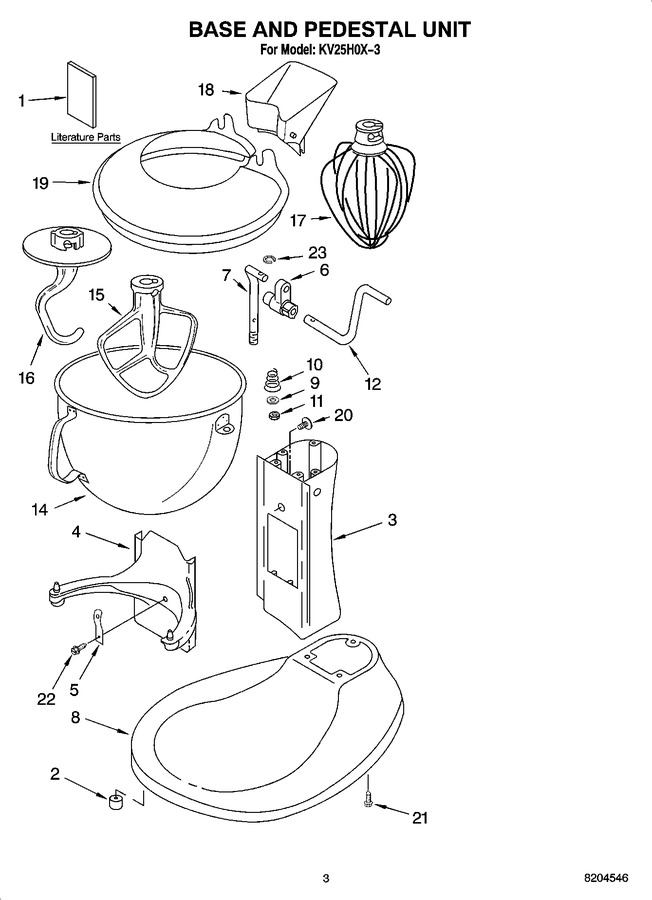

02 - Base And Pedestal Unit
03 - Case, Gearing, Planetary Unit And Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8204546 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT9707946 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 8211628 | Foot, Rubber (5) (Replaces: 9703414) |
|
$ 7.71 | |||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 7 | W11775238 | Rod, Bowl Lift (Replaces: 9706787) |
|
$ 5.73 | |||||
| 9 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 10 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 11 | 8533907 | Nut (Replaces: 4159092) |
|
$ 24.83 | |||||
| 12 | W11778321 | Handle, Bowl Lift (Replaces: 9706788) |
|
$ 24.01 | |||||
| 14 | WPW10717235 | Bowl (5 Qt) (Replaces: 9703550) |
|
$ 110.24 | |||||
| 15 | W11646967 | Beater, Flat (burnished) (Replaces: 9703485) |
|
Immediately | $ 48.92 | ||||
| 16 | W11319616 | Dough Hook (burnished) (Replaces: 9703486) |
|
$ 45.29 | |||||
| 17 | WP9703491 | Wire Whip (Replaces: 9703491) |
|
Immediately | $ 43.13 | ||||
| 18 | WPW10617049 | Pouring Spout (Replaces: 9703534) |
|
$ 63.02 | |||||
| 19 | WPW10617049 | Pouring Shield (Replaces: 9703533) |
|
$ 63.02 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | W10913677 | Screw (3) 1/4 - 20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 22 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 23 | WP9703307 | Clip Refer To Page 2 Color Variation Parts (Replaces: 9703307) |
|
Immediately | $ 4.42 |
