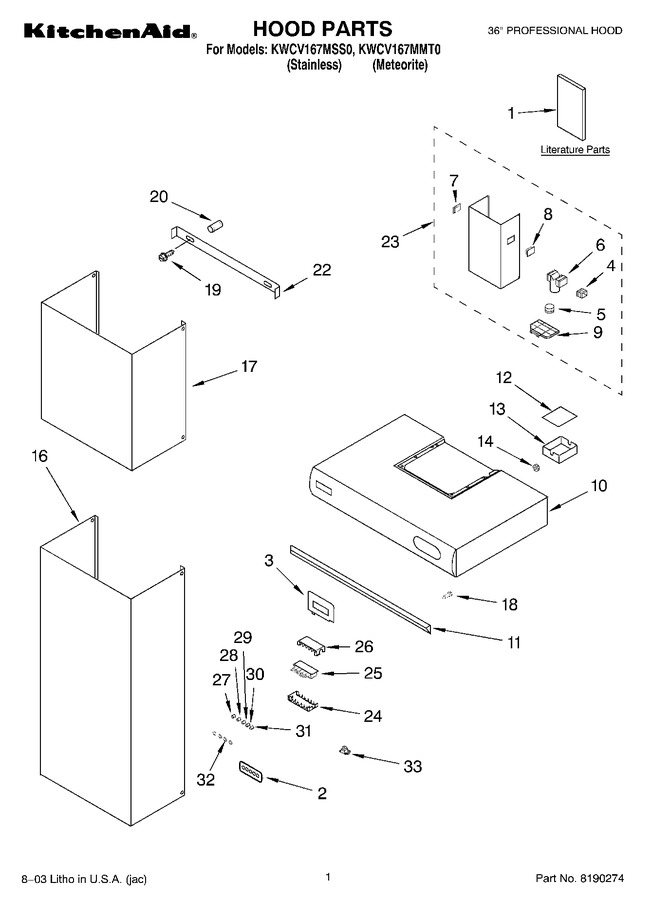

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8190278		Literature Parts (owners Manual)		Appelez-nous	-
2	8190347		Bezel (stainless)		Appelez-nous	-
2	8190348		Bezel (meteorite)		Appelez-nous	-
3	8190349		Panel, Control		Appelez-nous	-
4	8190356		Duct, Air - Spacer		Appelez-nous	-
5	8190357		Duct, Air-extnsion		Appelez-nous	-
6	8190355		Duct, Air-diverter		Appelez-nous	-
7	4360330		Grate, Vent-left		Appelez-nous	-
8	4360332		Grate, Vent-right		Appelez-nous	-
9	8285507		Filter, Charcoal				$ 92.76
10	8190361		Casing Assembly (stainless)		Appelez-nous	-
10	8190362		Casing Assembly (meteorite)		Appelez-nous	-
11	8190364		Support, Filter (meteorite)		Appelez-nous	-
11	8190363		Support, Filter (stainless)		Appelez-nous	-
12	8190359		Cover		Appelez-nous	-
13	8190360		Box, Wiring		Appelez-nous	-
14	4360062		Clamp-stran Relief		Appelez-nous	-
16	8190351		Chimney, Lower Ducted (meteorite)		Appelez-nous	-
16	8190350		Chimney, Lower Ducted (stainless)		Appelez-nous	-
17	8190353		Chimney, Upper (meteorite)		Appelez-nous	-
17	8190352		Chimney, Upper (stainless)		Appelez-nous	-
18	4360048		Pin, Hinge (6)		Appelez-nous	-
19	4360320		Screw		Appelez-nous	-
20	4360318		Plug		Appelez-nous	-
22	8190354		Bracket, Upper		Appelez-nous	-
23	8285506		Ductless Kit (meteorite)		Appelez-nous	-
23	8285505		Ductless Kit (stainless)		Appelez-nous	-
24	8190373		Housing, Control		Appelez-nous	-
25	8190374		Control, Motor		Appelez-nous	-
26	8190375		Housing, Control		Appelez-nous	-
27	8190376		Button		Appelez-nous	-
28	8190377		Button		Appelez-nous	-
29	8190378		Button		Appelez-nous	-
30	8190379		Button		Appelez-nous	-
31	8190380		Button		Appelez-nous	-
32	8190382		Trim, Button (4)		Appelez-nous	-
33	8190381		Connector		Appelez-nous	-
