01 - Hood Parts

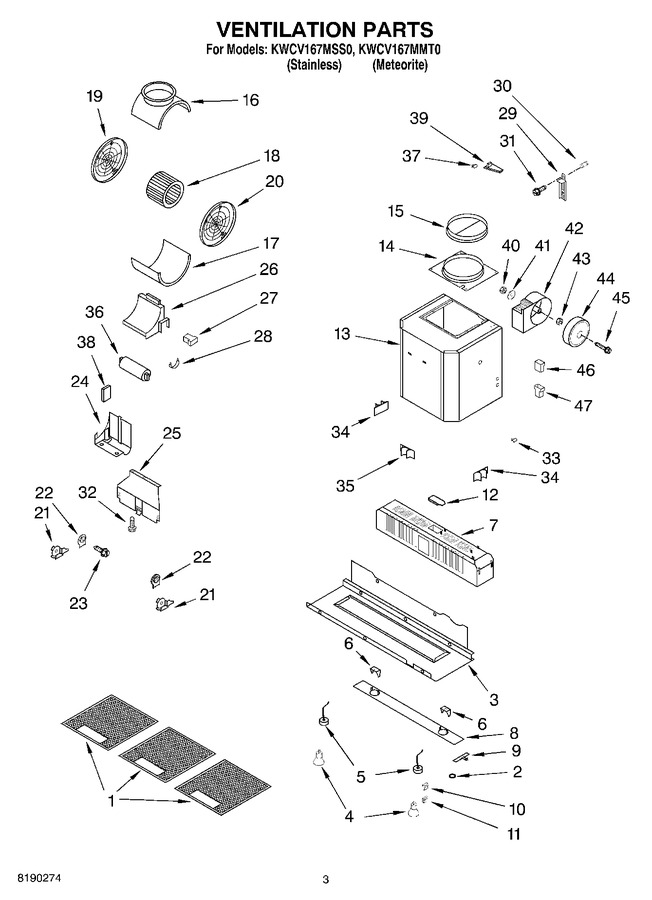

02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10252087 | Filter, Grease (Replaces: 8189594) |
|
Immediately | $ 294.79 | ||||
| 2 | 8190370 | Spacer, Lighting |
|
- | |||||
| 3 | 8190368 | Support, Light (meteorite) |
|
- | |||||
| 3 | 8190367 | Support, Light (stainless) |
|
- | |||||
| 4 | WPW10252088 | Bulb, Halogen (Replaces: 8189593) |
|
Immediately | $ 114.94 | ||||
| 5 | 8189597 | Holder, Bulb |
|
$ 33.45 | |||||
| 6 | 8190346 | Support, Bulb |
|
- | |||||
| 7 | 8190366 | Cover, Light |
|
- | |||||
| 8 | 8190369 | Support, Light |
|
- | |||||
| 9 | 4360263 | Bracket |
|
- | |||||
| 10 | 4360161 | Connector, Male |
|
$ 32.63 | |||||
| 11 | 4360162 | Connector, Female |
|
- | |||||
| 12 | 8190365 | Clamp-cable Holder |
|
- | |||||
| 13 | 8190406 | Housing |
|
- | |||||
| 14 | 8190405 | Extension, Flange |
|
- | |||||
| 15 | 8190358 | Damper |
|
- | |||||
| 16 | 8190389 | Housing, Upper |
|
- | |||||
| 17 | 8190387 | Housing, Lower |
|
- | |||||
| 18 | 8190390 | Motor, Blower |
|
- | |||||
| 19 | 8190388 | Support, Motor-sx |
|
$ 626.65 | |||||
| 20 | 8190391 | Support, Motor-dx |
|
$ 626.65 | |||||
| 21 | 8190395 | Bracket, Diffuser (left) |
|
- | |||||
| 21 | 8190399 | Bracket, Diffuser (right) |
|
- | |||||
| 22 | 8190394 | Bracket, Flexible (left-sx) |
|
- | |||||
| 22 | 8190400 | Bracket, Flexible (right-dx) |
|
- | |||||
| 23 | 8190396 | Screw |
|
- | |||||
| 24 | 8190383 | Cover, Wire |
|
- | |||||
| 25 | 8190398 | Bracket, Mounting |
|
- | |||||
| 26 | 8190392 | Cover, Wire |
|
- | |||||
| 27 | 8190393 | Connector |
|
- | |||||
| 28 | 8190386 | Cover, Wire |
|
- | |||||
| 29 | 8190402 | Bracket, Mount (2) |
|
- | |||||
| 30 | 4360318 | Plug |
|
- | |||||
| 31 | 4360320 | Screw |
|
- | |||||
| 32 | 8190397 | Screw |
|
- | |||||
| 33 | 8190401 | Clamp, Cable Guide |
|
- | |||||
| 34 | 8190415 | Cover |
|
- | |||||
| 35 | 8190407 | Cover |
|
- | |||||
| 36 | 8190385 | Capacitor |
|
- | |||||
| 37 | 4360239 | Clamp, Cable |
|
- | |||||
| 38 | 8190384 | Cover, Box |
|
- | |||||
| 39 | 8190404 | Cover, Wire |
|
- | |||||
| 40 | 8190414 | Nut |
|
- | |||||
| 41 | 8190413 | Washer |
|
- | |||||
| 42 | 8190412 | Support |
|
- | |||||
| 43 | 8190411 | Nut |
|
$ 5.88 | |||||
| 44 | WPW10252120 | Transformer (Replaces: 8190410) |
|
$ 567.91 | |||||
| 45 | 8190403 | Screw |
|
- | |||||
| 46 | 8190409 | Connector, Female |
|
- | |||||
| 47 | 8190408 | Connector, Male |
|
- |
