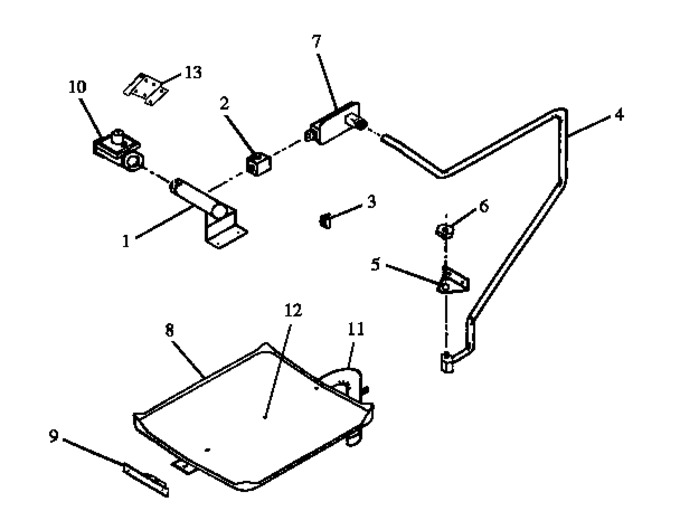

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0304174		Inlet Pipe Assy.		Appelez-nous	-
1	0060278		Inlet Pipe Assy.		Appelez-nous	-
2	Y0060502		Valve, Manual Shut Off		Appelez-nous	-
3	Y0016319		Clip Spring Thermo Bulb		Appelez-nous	-
4	0060503		Hood & Tube Assy.		Appelez-nous	-
5	Y0060550		Bracket, Orifice		Appelez-nous	-
6	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
7	Y0060501		Valve, Gas		Appelez-nous	-
8	Y0054043		Reflector, Broil		Appelez-nous	-
9	Y0061072		Mtg. Bracket, Broil Burner		Appelez-nous	-
10	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
12	Y0041915		Rivet Type Cherry N		Appelez-nous	-
NI	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
