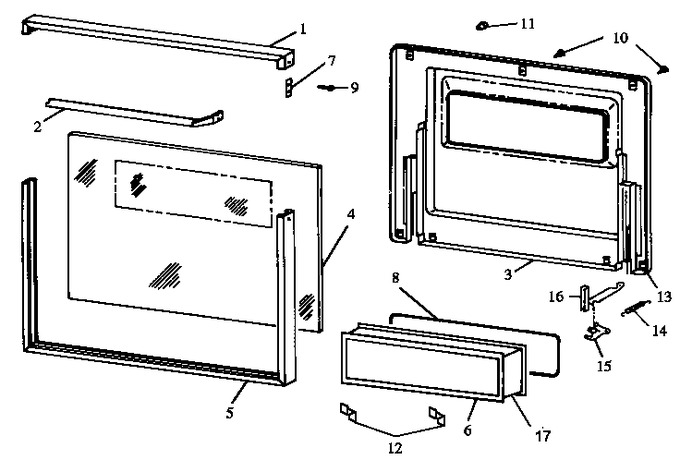

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0064406		Door Frame Top		Appelez-nous	-
2	0072966		Handle-22.780l For Blk Glass D		Appelez-nous	-
3	61093CG		Backer, Oven Door		Appelez-nous	-
4	0061052		Glass, Broiler Door Panel		Appelez-nous	-
5	Y0064401		Door Frame,bottom		Appelez-nous	-
7	Y0072962		Plate, Handle Mtg.		Appelez-nous	-
9	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: Y0041811)				$ 6.57
10	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0079358)			Immediately	$ 7.52
11	0011061		Bumper, Rubber		Appelez-nous	-
13	Y0097109		Socket Hinge L H		Appelez-nous	-
13	Y0035096		Socket Hinge R H		Appelez-nous	-
15	0060914		Hinge Roller Assy, Lh		Appelez-nous	-
15	0060915		Hinge Roller Assy, Rh		Appelez-nous	-
NI	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
NI	Y0095195		Insulation,wrapper		Appelez-nous	-
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	0071798		Screw		Appelez-nous	-
