Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0304130 Tubing Inlet Appelez-nous -
2 0304131 Tubing, Gas Appelez-nous -
3 Y0016319 Clip Spring Thermo Bulb Appelez-nous -
4 Y0304129 Tubing Broil Burner To Gas Val Appelez-nous -
5 Y0069371 Orifice Fitting Appelez-nous -
6 Y0097242 Orifice Ultra Ray Burner 48 Appelez-nous -
6 Y0095632 Orifice Ultra Ray Burner 56 Appelez-nous -
7 Y0066544 Valve, Gas Appelez-nous -
8 Y0091059 Rxp Oven Burner Appelez-nous -
9 0099887 Burner Support Bracket Utra Ry Appelez-nous -
10 0065450 Pressure Regulator Appelez-nous -
11 0074440 Manual Shut-off Valve Appelez-nous -
NI Y0064657 Pipe Plug, 1/4`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

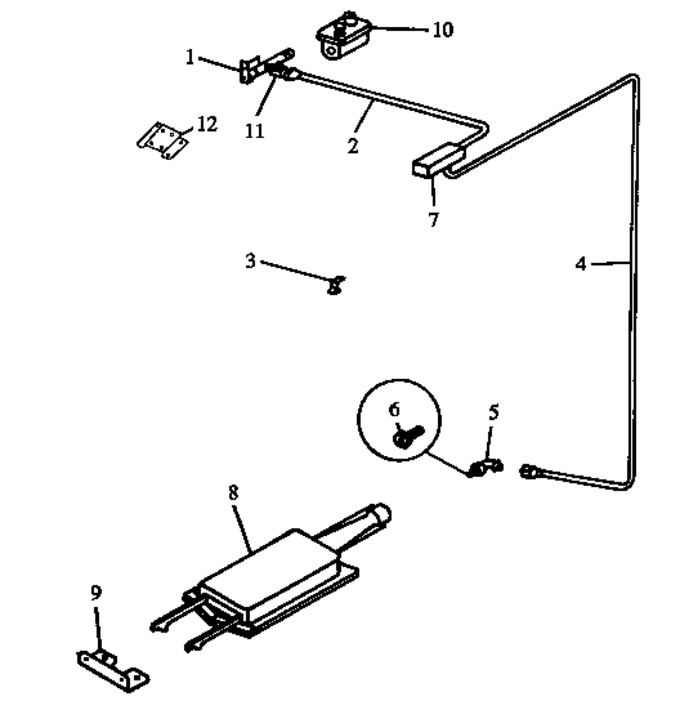

Diagram for RWS214UD (BOM: P1132434N)
