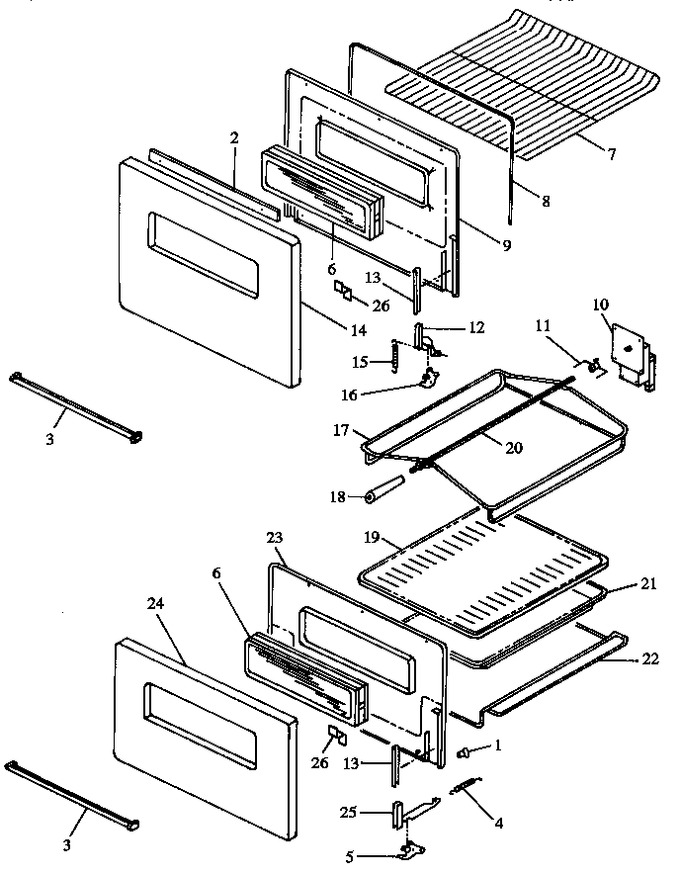

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0011061		Bumper, Rubber		Appelez-nous	-
2	0076854		Counterweight Ov Door W/window		Appelez-nous	-
3	Y0079689		Handle, Oven Door		Appelez-nous	-
4	0011204		Door Spring, 16 Inch Plain		Appelez-nous	-
5	0060914		Hinge Roller Assy, Lh		Appelez-nous	-
5	0060915		Hinge Roller Assy, Rh		Appelez-nous	-
6	0073879		Oven Window Assy.		Appelez-nous	-
7	0090769		Rack, Oven		Appelez-nous	-
7	Y0090771		Ov Rack 1/8`` Oversized		Appelez-nous	-
7	Y0090770		Ov Rack 1/16`` Undersized		Appelez-nous	-
7	Y0090772		Ov Rack 1/16`` Oversized		Appelez-nous	-
7	0095705		Rack, Oven		Appelez-nous	-
8	Y0308213		Gasket, Oven Door		Appelez-nous	-
9	0077311		Backer, Oven Door, With Window		Appelez-nous	-
12	Y0060910		Mtg Channel, Lh		Appelez-nous	-
12	Y0060911		Mtg Channel, Rh		Appelez-nous	-
13	Y0097109		Socket Hinge L H		Appelez-nous	-
13	Y0035096		Socket Hinge R H		Appelez-nous	-
14	305927W		Net-panel,door(white)		Appelez-nous	-
14	Y077318D		Oven Door Panel W/wind Gold		Appelez-nous	-
14	305927L		Panel, Door (almond)		Appelez-nous	-
15	Y0016098		Door Spring, 24 Inch Plain		Appelez-nous	-
16	0060918		Fixed Hinge, Lh		Appelez-nous	-
16	0060919		Fixed Hinge, Rh		Appelez-nous	-
19	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 54.64
21	4396923		Pan, Broiler   (Replaces: 11161CG)			Immediately	$ 54.64
22	Y0087532		Rack, Broiler 1/8``over.		Appelez-nous	-
22	Y0306409		Rack, Oven 17 31/32x 18 1/2``		Appelez-nous	-
23	77254CG		Backer, Broiler Door		Appelez-nous	-
24	305929W		Panel, Door (white)		Appelez-nous	-
24	077314D		Broiler Door Panel W/wind Gold		Appelez-nous	-
24	305929L		Panel, Door (almond)		Appelez-nous	-
25	Y0307561		Ass`y, Mtg. Channel		Appelez-nous	-
25	0307560		Ass`y, Mtg Channel		Appelez-nous	-
26	0308106		Bracket, Glass Pack		Appelez-nous	-
NI	WP486255		Nut, Lock   (Replaces: Y0060922)				$ 5.82
NI	Y0060923		Shoulder Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
