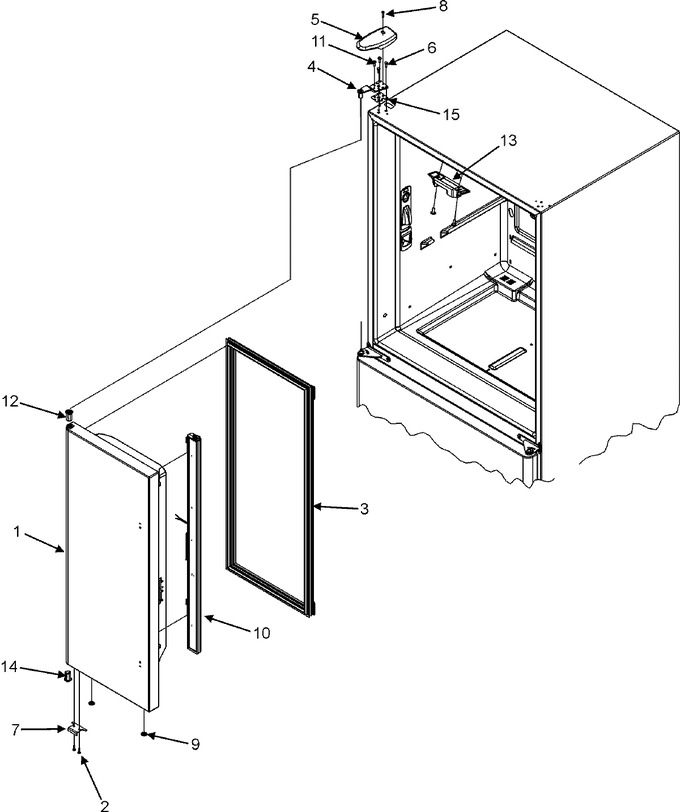

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007155		Lh Ref Dr Foam Assy (wht)	10	Appelez-nous	-
2	WP98165		Screw   (Replaces: 67006287)	10			$ 8.57
3	W10830189		Gasket, French Door (wht)   (Replaces: 67003546)	10			$ 283.41
4	12626911ED		Hinge, Top (lt-blk)   (Replaces: 67005826)	10			$ 89.05
5	67007156		Cover, Top Hinge (wht)	10	Appelez-nous	-
6	WP489349		Screw   (Replaces: 67006303)	10		Immediately	$ 8.43
7	12968202W		Stop, Door (wht)   (Replaces: 67003779)	10			$ 69.29
8	WP8281196		Screw   (Replaces: 67006521)	10		Immediately	$ 7.55
9	10712401		Plug, Vent (wht)	10			$ 7.79
10	W11233072		Screw   (Replaces: 67006626)	10		Immediately	$ 14.72
11	W11214483		Screw   (Replaces: 67006487)	10		Immediately	$ 14.72
12	WP67004977		Bushing, Door (wht)   (Replaces: 67004977)	10			$ 8.20
13	WP67003405		Block, Pivot   (Replaces: 67003405)	10		Immediately	$ 8.21
13	W11233072		Screw   (Replaces: 67006626)	10		Immediately	$ 14.72
14	67002722		Bushing, Door (wht)	10			$ 22.17
15	12695601		Shim, Top Hinge	10	Appelez-nous	-
