Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP67001279 Tray, Dairy   (Replaces: 67001279) 10 In-Stock Immediately $ 88.01

2 WP12744905 Dairy Assy   (Replaces: 67003819) 10 Special Order $ 113.99

3 WPW10324005 Bucket, Med Ref Door   (Replaces: 67003766) 10 Special Order $ 77.75

4 WPW10289494 Bucket, Ref Dr Gal   (Replaces: 67005054) 10 Special Order $ 87.58

5 10423131 Bin, Utility 10 Special Order $ 31.13

6 WP489349 Screw, Tf Hex/washer Hd   (Replaces: 67005822) 10 In-Stock Immediately $ 8.43

7 10436506 Tray, Egg 10 Special Order $ 8.28

8 12655102AP Hinge, Center (wht)   (Replaces: 67002028) 10 Special Order $ 150.87

9 10436404 Lid, Utility 10 Special Order $ 60.85


    View Diagram in Separate Window     Print Icon   Print Part List

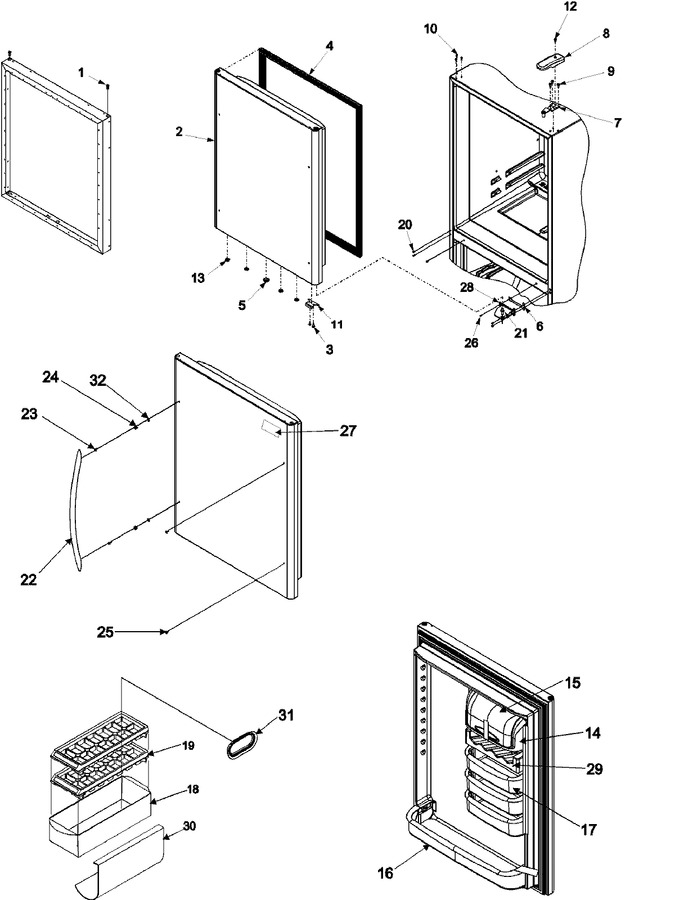

Diagram for RY4951 (BOM: RY4951000W0)
