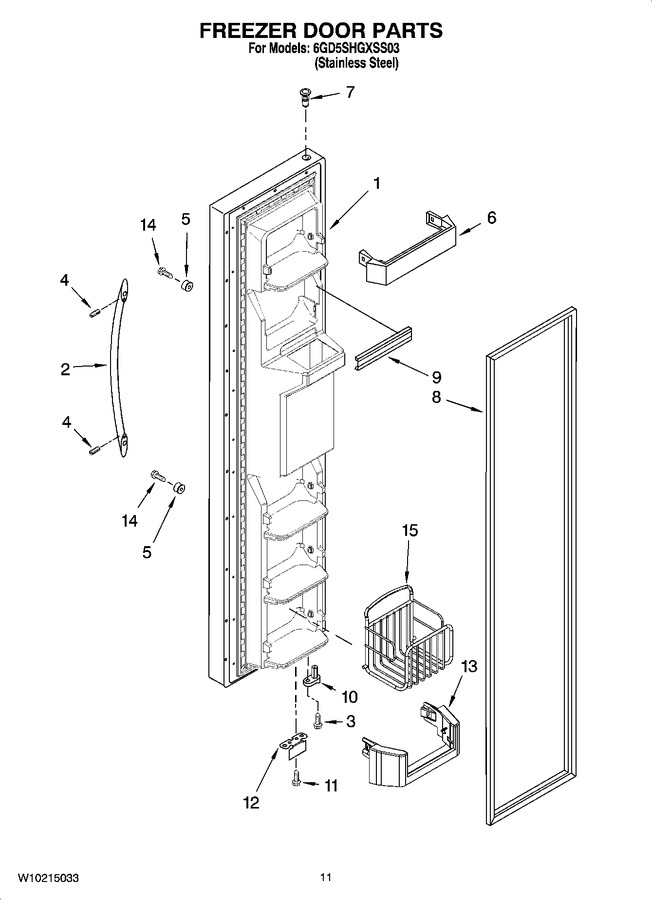

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10129904 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | 2304832SK | Handle (includes 4) (stainless Steel) |
|
- | |||||
| 3 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 4 | W11366418 | Screw, Set (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 5 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2171157 | Trivet, Shelf (2) (Replaces: 2171157K) |
|
$ 63.70 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 24.27 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | WP2206629B | Bracket, Door Stop (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 13 | 2223334 | Trivet, Tilt-out (2) |
|
$ 25.46 | |||||
| 14 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 15 | 2304309 | Basket, Tilt-out (2) |
|
$ 77.01 |
