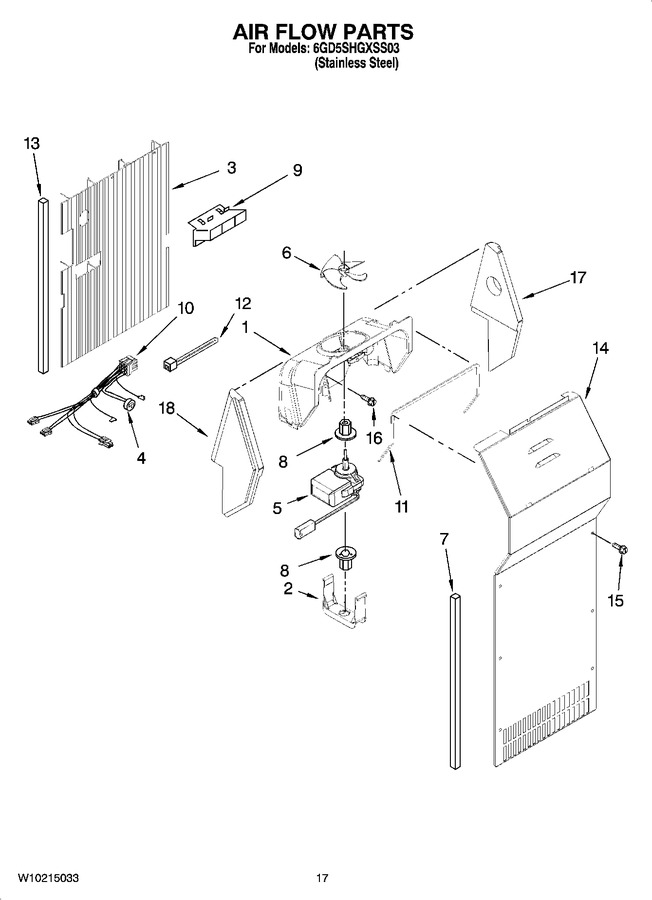

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 111.97
2	2155590		Retainer Fan Motor				$ 5.83
3	2203593		Air Duct Freezer		Appelez-nous	-
4	W10129958		Bi-metal, Defrost		Appelez-nous	-
5	WP2321275		Fan Motor   (Replaces: 2321275)				$ 303.64
6	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
7	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 82.80
8	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
9	2182146		Duct, Icemaker				$ 88.84
10	W10242395		Harness, Fan Evaporator (includes 4)   (Replaces: W10129781)		Appelez-nous	-
11	WP2155789		Gasket, Fan Scroll   (Replaces: 2155789)				$ 7.79
12	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
13	4388500		Gasket   (Replaces: 2203876)				$ 90.39
14	2203841		Cover, Evaporator (includes 7)		Appelez-nous	-
15	4389654		Screw (6)   (Replaces: 8281159)				$ 13.89
16	WP489478		Screw   (Replaces: 489478)				$ 7.75
17	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
18	4388358		Support, L.s   (Replaces: 2203596)				$ 31.16
