SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

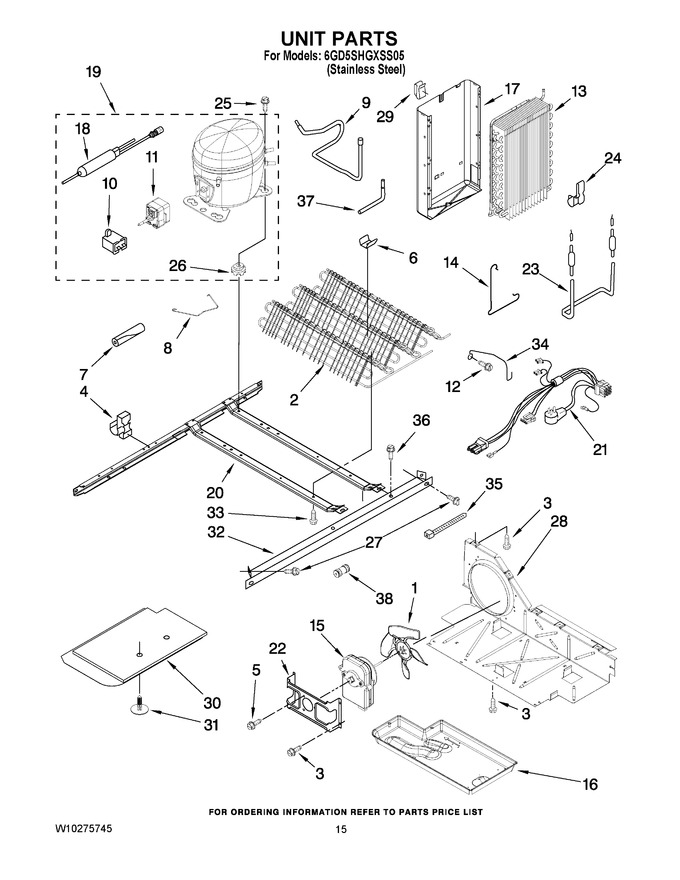

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
2	2324712		Condenser Assembly   (Replaces: W10121484)				$ 308.05
3	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
6	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
8	2302129		Strap, Bale		Appelez-nous	-
9	2205765		Tube Suction				$ 36.04
10	2321245		Capacitor		Appelez-nous	-
11	2312003		Start-device, Combination (start Relay And Overload)		Appelez-nous	-
12	W10142288		Screw				$ 7.63
13	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
14	2161324		Clamp		Appelez-nous	-
15	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 309.96
16	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
17	2304289		Heat Shield		Appelez-nous	-
18	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
19	WP8201733		Compressor (includes Items 10, 11, 18 & 26) (also Order 876765 Tube Kit)   (Replaces: W10120454)				$ 553.51
20	2304904		Unit Mounting Frame		Appelez-nous	-
21	W10123598		Unit, Harness		Appelez-nous	-
22	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
23	WPW10123653		Heater, Defrost   (Replaces: W10123653)				$ 156.66
24	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
25	876811		Screw   (Replaces: 489373)				$ 7.42
26	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
27	489340		Screw		Appelez-nous	-
28	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
29	2155547		Clip, Heat Shield		Appelez-nous	-
30	2304899		Unit Cover, Bottom		Appelez-nous	-
31	489396		Clip				$ 10.72
32	2305374		Unit Mounting Rail				$ 80.64
33	W11544659		Screw   (Replaces: 8281232)				$ 13.67
34	2186495		Guard, Fan		Appelez-nous	-
35	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
36	WP489427		Screw   (Replaces: W10146358)				$ 7.47
37	2325479		Tube, Process		Appelez-nous	-
38	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 21.59
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
