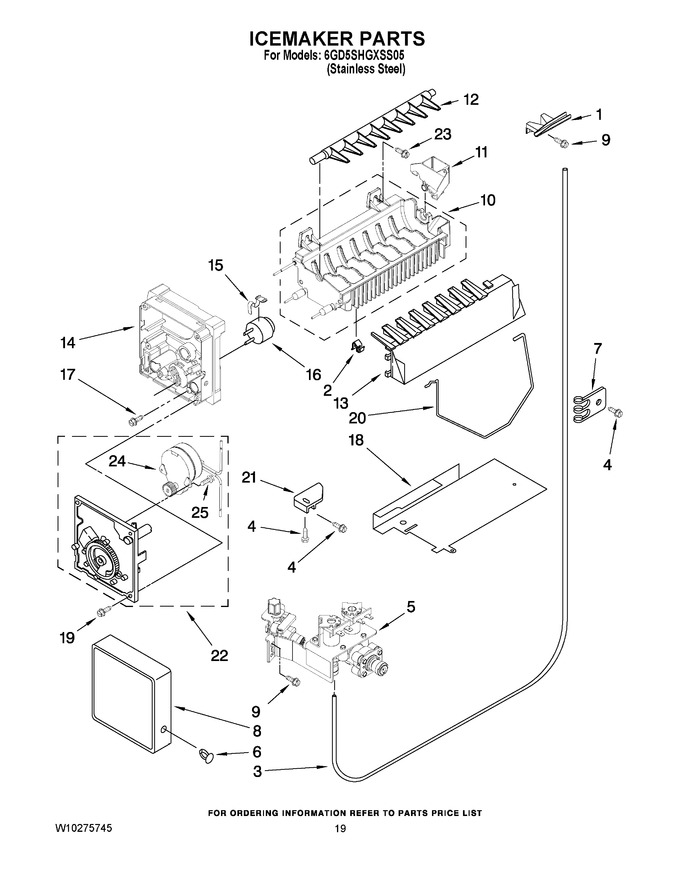

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 35.32 | |||||
| 2 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 3 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 32.41 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 5 | WPW10158157 | Filter Valve Asm (Replaces: W10158157) |
|
$ 263.93 | |||||
| 6 | 489115 | Clip |
|
$ 5.51 | |||||
| 7 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 11.92 | |||||
| 8 | WPW10289690 | Cover (Replaces: 2174183) |
|
Immediately | $ 8.82 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 10 | W10122523 | Mold & Heater Assembly (also Order 542638) |
|
- | |||||
| 11 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 29.16 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 13 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 109.80 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 16 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 17 | W10001280 | Screw |
|
- | |||||
| 18 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 19 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 20 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 63.21 | ||||
| 21 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 22 | W10122522 | Module Assembly (includes Items 24 And 25) |
|
- | |||||
| 23 | W10141596 | Screw |
|
$ 9.22 | |||||
| 24 | 2321277 | Motor |
|
- | |||||
| 25 | W10001240 | Screw |
|
$ 9.22 | |||||
| 100 | W10190963 | Complete Icemaker Assembly |
|
- |
