02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
05 - Interior And Control Parts
06 - Shelves And Supports
07 - Ice Maker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

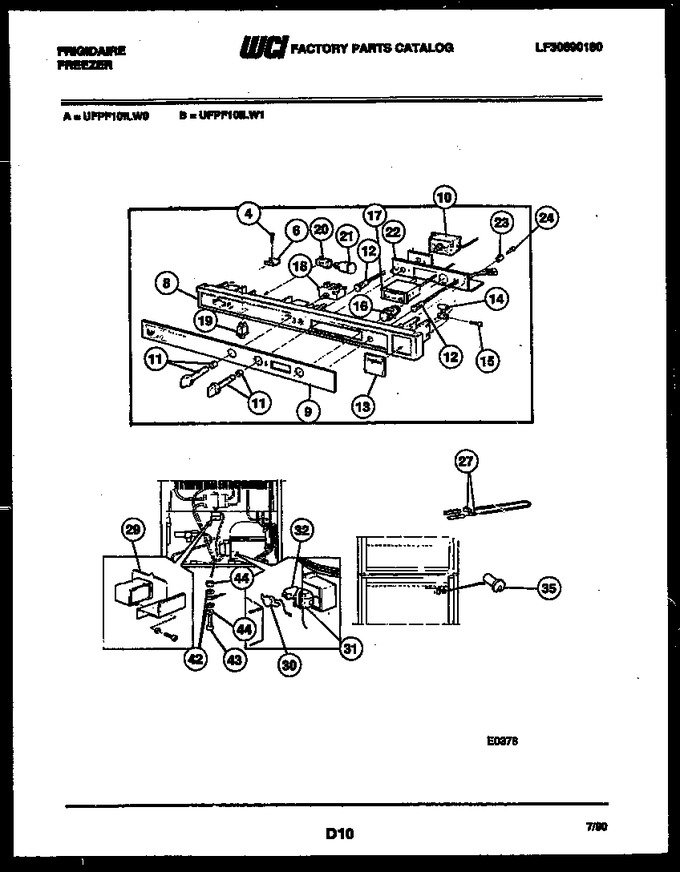

| 4 | 5303209845 | Screw |
|
- | |||||
| 6 | 3015525 | Mounting Plate |
|
- | |||||
| 8 | 3015527 | Panel-black |
|
- | |||||
| 9 | 5303209847 | Escutcheon-black |
|
- | |||||
| 10 | 3015889 | Thermostat |
|
$ 223.69 | |||||
| 11 | 5303015530 | Knob-thermostat-black |
|
- | |||||
| 12 | 3015531 | Lamp Yellow 110v |
|
- | |||||
| 12 | 5303015532 | Lamp-green, 110 V |
|
- | |||||
| 13 | 3015533 | Nameplate |
|
- | |||||
| 14 | 3015534 | Anti-strain Clip |
|
- | |||||
| 15 | 3015535 | Screw-stainless |
|
- | |||||
| 16 | 3015536 | Switch |
|
- | |||||
| 17 | 3015537 | Thermometer |
|
- | |||||
| 18 | 3015538 | Switch |
|
- | |||||
| 19 | 3015539 | Switch-door |
|
- | |||||
| 20 | 3015540 | Socket |
|
- | |||||
| 21 | 3015541 | Bulb |
|
- | |||||
| 22 | 3015542 | Retainer |
|
- | |||||
| 23 | 3015543 | Bushing |
|
- | |||||
| 24 | 5303209848 | Screw-stainless |
|
- | |||||
| 27 | 3015547 | Coupling |
|
- | |||||
| 29 | 3015549 | Capacitor |
|
- | |||||
| 30 | 3200957 | Overload |
|
- | |||||
| 31 | 5303017753 | Relay |
|
- | |||||
| 32 | 3015552 | Capacitor |
|
- | |||||
| 35 | 3015555 | Plug-white |
|
- | |||||
| 42 | 3015932 | Washer Lock |
|
- | |||||
| 43 | 5303209849 | Screw |
|
- | |||||
| 44 | 5303209850 | Nut-brass |
|
- |
