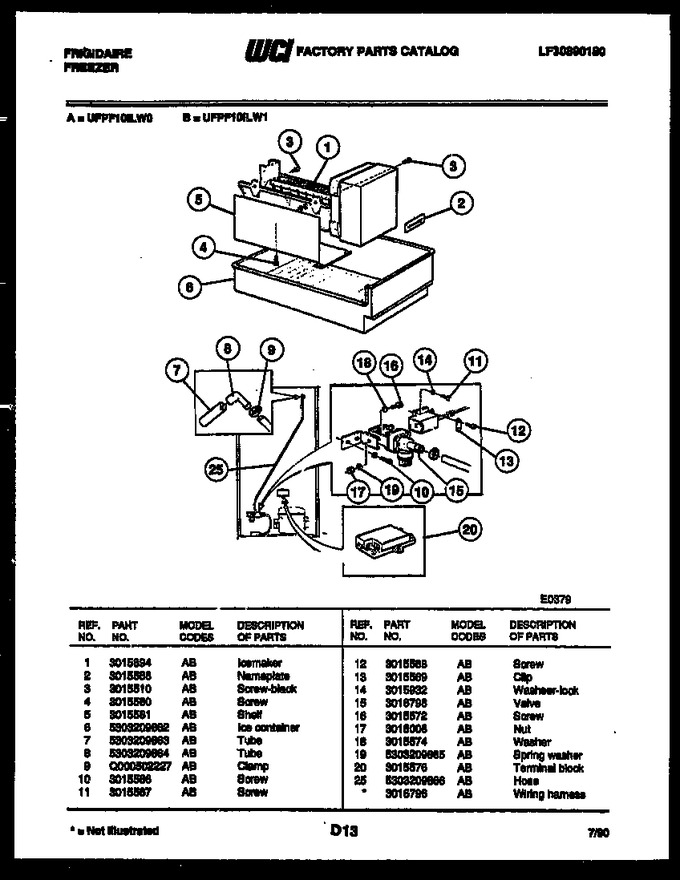

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
05 - Interior And Control Parts
06 - Shelves And Supports
07 - Ice Maker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015894 | Icemaker |
|
- | |||||
| 2 | 3015558 | Nameplate |
|
- | |||||
| 3 | 3015510 | Screw-black |
|
- | |||||
| 4 | 3015560 | Screw |
|
- | |||||
| 5 | 3015561 | Shelf |
|
- | |||||
| 6 | 5303209862 | Ice Container |
|
- | |||||
| 7 | 5303209863 | Tube |
|
- | |||||
| 8 | 5303209864 | Tube |
|
- | |||||
| 9 | Q000502227 | Clamp |
|
- | |||||
| 10 | 3015566 | Screw |
|
- | |||||
| 11 | 3015567 | Screw |
|
- | |||||
| 12 | 3015568 | Screw |
|
- | |||||
| 13 | 3015569 | Clip |
|
- | |||||
| 14 | 3015932 | Washer Lock |
|
- | |||||
| 15 | 3016798 | Valve |
|
- | |||||
| 16 | 3015572 | Screw |
|
- | |||||
| 17 | 3016008 | Nut |
|
- | |||||
| 18 | 3015574 | Washer |
|
- | |||||
| 19 | 5303209865 | Spring Washer |
|
- | |||||
| 20 | 3015576 | Terminal Block |
|
- | |||||
| 25 | 5303209866 | Hose |
|
- | |||||
| *33135 | 3016796 | Wiring Harness |
|
- |
