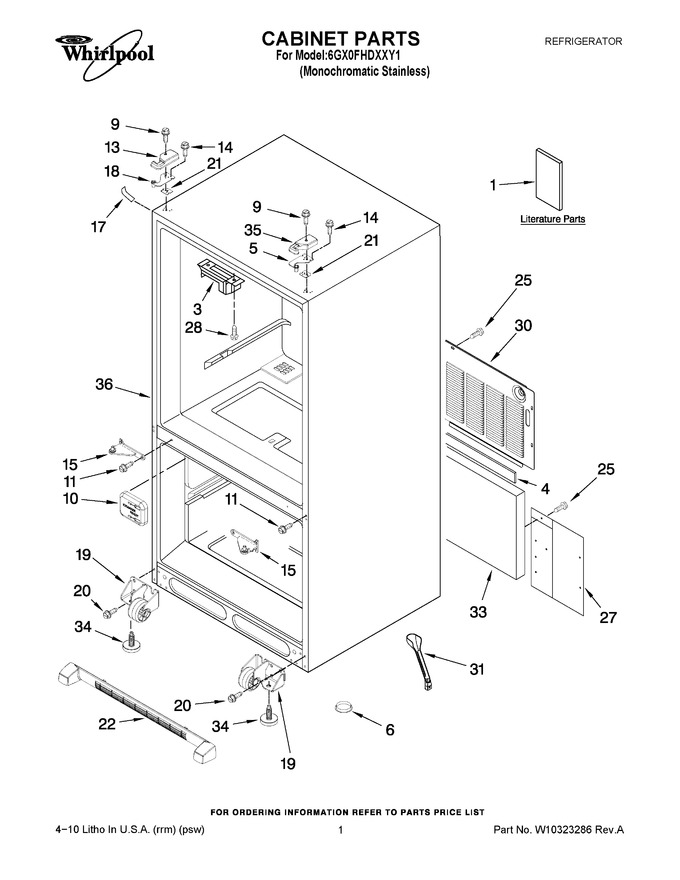

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189SP		Owners Manual		Appelez-nous	-
1	W10308620		Tech Sheet		Appelez-nous	-
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 44.89
6	A3076901		Plug, Button				$ 5.70
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 8.03
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.02
13	W10217487		Cover, Left Hinge (apollo Grey)				$ 21.41
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 7.88
15	12655102AP		Hinge, Center (apollo Grey)				$ 143.69
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 86.75
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 119.56
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 6.95
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 20.34
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 7.61
30	W10212203		Cover, Unit		Appelez-nous	-
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
33	12820505		Insulation, Sound				$ 71.70
34	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
35	12629801AP		Cover, Right Hinge (apollo Grey)				$ 13.71
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
