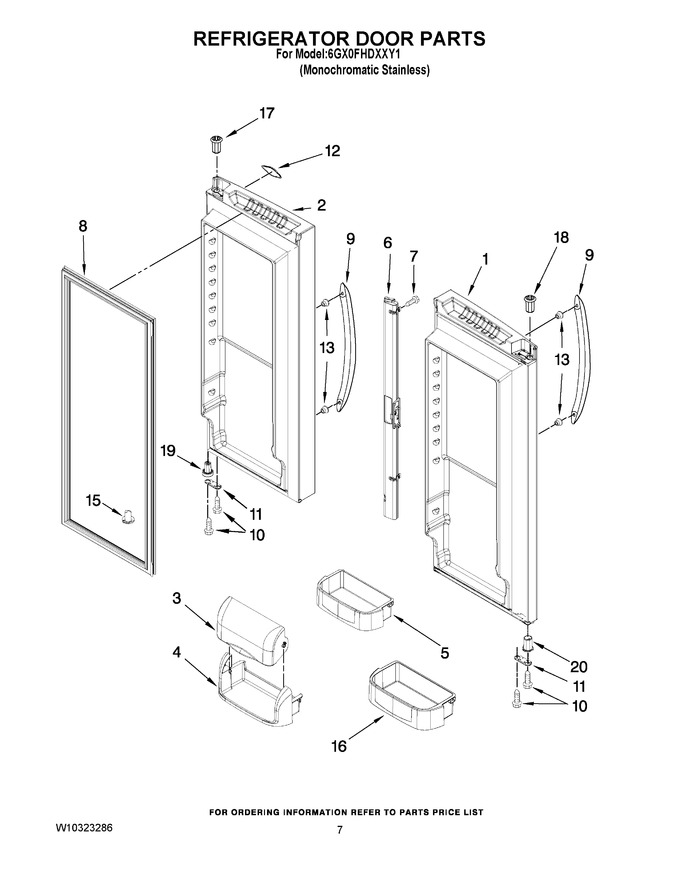

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107716SQ | Door, Left (stainless) |
|
- | |||||
| 2 | 13107710SQ | Door, Right (stainless) |
|
$ 767.95 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10324005 | Bin, Shelf (3) (medium) (Replaces: 12557212) |
|
$ 74.05 | |||||
| 6 | 12722811AP | Mullion, Door (apollo Grey) |
|
- | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 8 | W10830162 | Gasket, Door (2) (apollo Grey) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 188.78 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | W11401472 | Stop, Door (apollo Grey) (Replaces: 10447114) |
|
Immediately | $ 22.44 | ||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | WP12992902 | Screw, Handle (Replaces: 12992902) |
|
$ 11.07 | |||||
| 15 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 16 | WPW10289494 | Bin, Shelf (2) (gallon) (Replaces: 12699004) |
|
$ 83.41 | |||||
| 17 | 10961006AP | Bushing-door-up-rh |
|
$ 9.19 | |||||
| 18 | 12395501AP | Bushing-door-up-lh |
|
$ 12.05 | |||||
| 19 | 12028601AP | Bushing-door-lw-rh |
|
$ 5.71 | |||||
| 20 | 12699301AP | Bushing-door-lw-lh |
|
$ 13.44 |
