Diagram # Part Number Description Series Availability Ships Price Add to Cart
40 C8971902 Tunnel, Heat Ex. Appelez-nous -
50 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

70 1023401 Fill Tube Assembly Appelez-nous -
110 M0580007 Grommet, Screw Appelez-nous -
130 10923101 Tunnel, Retainer Appelez-nous -
140 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 13.47

160 D7789808 Ladder, Cantilever Appelez-nous -
170 D7785401 Grille-rtn Air Appelez-nous -
170 M0580007 Grommet, Screw Appelez-nous -
170 D7789809 Ladder, Cantilever Appelez-nous -
220 Y00000000 See Note E Vt Mull-pnt -- (see Note) Appelez-nous -
280 A3080001 Plug, Button (blk) Appelez-nous -
300 M0581001 Grommet, Screw Appelez-nous -
420 10187501 Tunnel Wire Appelez-nous -
430 10187601 Tunnel Wire Appelez-nous -
450 D7716409 Housing-ref Light Appelez-nous -
460 D7297603 Cover, Light Sw Appelez-nous -
470 D7749002 Cover Light Appelez-nous -
490 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

500 18805 Switch   (Replaces: C3680306) Special Order $ 21.59

520 B5733302 Clip, Ground Appelez-nous -
540 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

550 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

600 10270203 Housing, Light Appelez-nous -
610 A3189337 Gasket Appelez-nous -
8110 12146602 Strip-lh Bot Hinge Appelez-nous -
8120 12146601 Strip-rh Bot Hinge Appelez-nous -
8130 12146801 Spacer, Btm Hinge Appelez-nous -
8140 12146802 Shim-lh Bot Hinge Appelez-nous -
8150 A4539631 Rivet, Pop (wht) Appelez-nous -
8160 12147602 Cam-hinge Adj Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

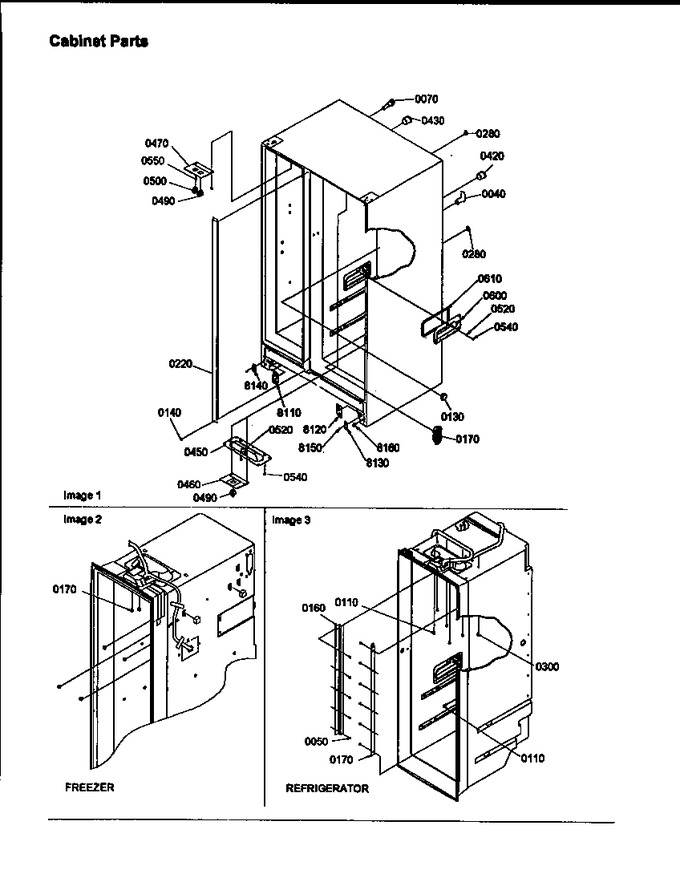

Diagram for SBD20S4E (BOM: P1190004W E)
