| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 20 | R0161087 | Kit, Thermostat (Replaces: 12017804) |
|
$ 128.76 | |||||
| 20 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 20 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 30 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 30 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 30 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 40 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 40 | R0000199 | Fan-evap/5.250 (Replaces: 10890101) |
|
$ 166.01 | |||||
| 50 | R0170055 | Assy,low Side(sxs 22) |
|
$ 322.79 | |||||
| 50 | 10656101 | Brkt Mtr |
|
- | |||||
| 50 | 10988501 | Kit, Water Tank |
|
- | |||||
| 60 | 10654206 | Motor, Evap Fan |
|
- | |||||
| 70 | 10656001 | Brk`t-mtr Mt/lw |
|
- | |||||
| 80 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 100 | C8913701 | Support, Mc |
|
- | |||||
| 160 | C8956101 | Assy, Roller Bracket |
|
- | |||||
| 170 | M1200004 | Cotter Pin K |
|
- | |||||
| 180 | M1200202 | Pin K |
|
- | |||||
| 190 | 12142001 | Tube-drain |
|
- | |||||
| 220 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 230 | M0102303 | Clamp |
|
- | |||||
| 350 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 400 | 12146701 | Shim-bot Hinge |
|
- | |||||
| 460 | M0204339 | Screw Bolt K |
|
- | |||||
| 470 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 480 | 12146702 | Shim-bot Hinge |
|
- | |||||
| 520 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 530 | 10496112 | Kit,hinge Rh Btm(b) |
|
- | |||||
| 900 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 1100 | 12021201 | Baffle, Air |
|
- | |||||
| 1110 | 10093301 | Screw, Adj Roller |
|
- | |||||
| 1200 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1400 | M0274067 | Washer, Nylon |
|
- | |||||
| 3700 | 12146901 | Brkt-adj Hinge |
|
- | |||||
| 4000 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 4010 | B8386608 | Gasket |
|
- | |||||
| 4040 | B8386607 | Gasket (1=1ft.) |
|
- | |||||
| 4050 | 10893802 | Shield, Evap |
|
- | |||||
| 4060 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 4070 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4080 | 10098801 | Rivet |
|
- | |||||

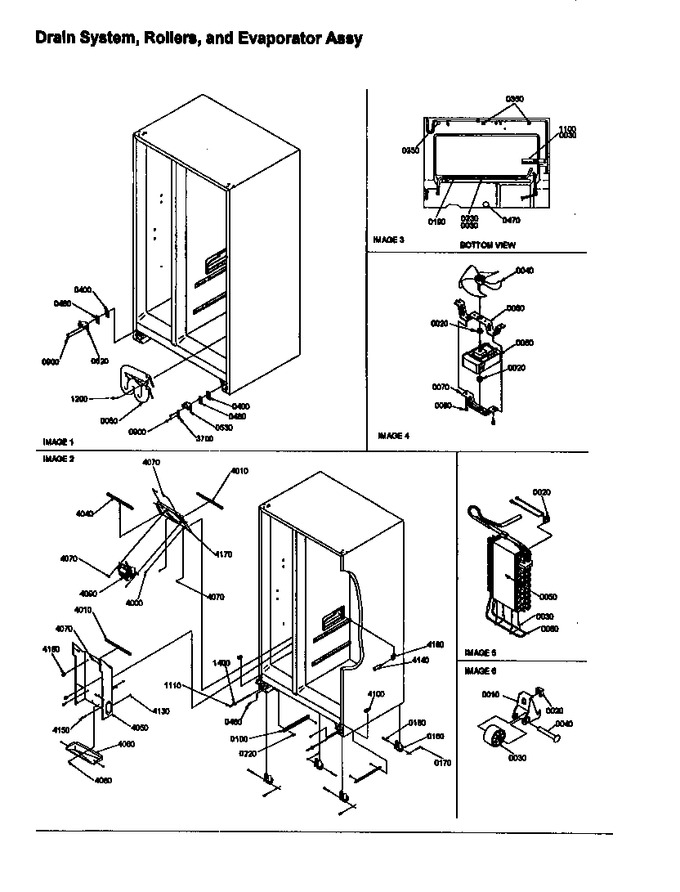

| 4090 | Y00000000 | See Note Evap Fn Mtr Assembly -- (see Image 4 For Assembly Breakdown) |
|
- | |||||
| 4100 | R0181181 | Kit,dr Closure (Replaces: 12113502) |
|
Immediately | $ 7.55 | ||||
| 4130 | M0580002 | Grommet A |
|
- | |||||
| 4140 | WPA3073101 | Bulb 120v. 40w. (Replaces: A3079001) |
|
Immediately | $ 12.72 | ||||
| 4150 | 10527401 | Clip, Evap |
|
- | |||||
| 4160 | 10623003 | Clip, Evaporator |
|
- | |||||
| 4170 | 10890202 | Evap Fan Shroud |
|
- | |||||
| 4180 | 10281601 | Socket-light |
|
- |
