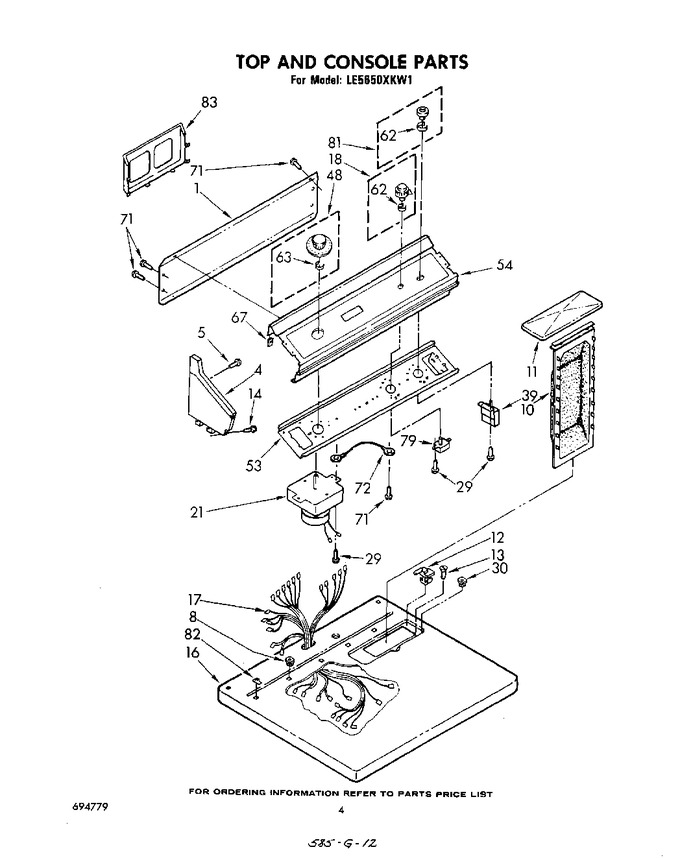

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358470		Panel, Rear Console		Appelez-nous	-
4	375337		Cap, End (l.h.) (white)		Appelez-nous	-
4	375333		Cap, End (l.h.) (white Cap, End (r.h.))		Appelez-nous	-
5	355326		Screw, 8-18 (4)		Appelez-nous	-
8	358473		Nut, Push-in (2)				$ 5.84
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	358225		Screw, 8-18 X 1 (2)		Appelez-nous	-
16	688479		Top (white)		Appelez-nous	-
17	696072		Harness, Electric Wiring		Appelez-nous	-
18	690292		Control Knob, Temperature		Appelez-nous	-
21	687950		Timer Assembly, 60 Hz.		Appelez-nous	-
29	WP3390631		Screw, Tapping (2)   (Replaces: 339554)				$ 7.82
30	98460		Nut, Push-in (2)				$ 12.07
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
48	690200		Timer Knob		Appelez-nous	-
53	359708		Bracket, Control		Appelez-nous	-
54	688348		Panel, Console		Appelez-nous	-
62	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
63	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
67	98084		Clip, ``u`` (4)		Appelez-nous	-
71	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
72	690853		Wire, Ground		Appelez-nous	-
79	694720		Switch, Temperature		Appelez-nous	-
81	346219		Button, Push-to-start		Appelez-nous	-
82	358472		Stop, Push-in (2)		Appelez-nous	-
83	357645		Rack, Literature		Appelez-nous	-
	299885		Wire, Splicing 240 Volt		Appelez-nous	-
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT694779		List, Service Parts		Appelez-nous	-
	LIT694345		Instructions, Installation		Appelez-nous	-
	LIT693677		Use & Care Guide		Appelez-nous	-
	LIT693849		Guide, Dryer		Appelez-nous	-
	LIT677971		Ice Maker (in Refrigerator)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	LIT677967		Dishwasher		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 35.01
	LIT677818		Dryer		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21

    View Diagram in Separate Window       Print Part List
