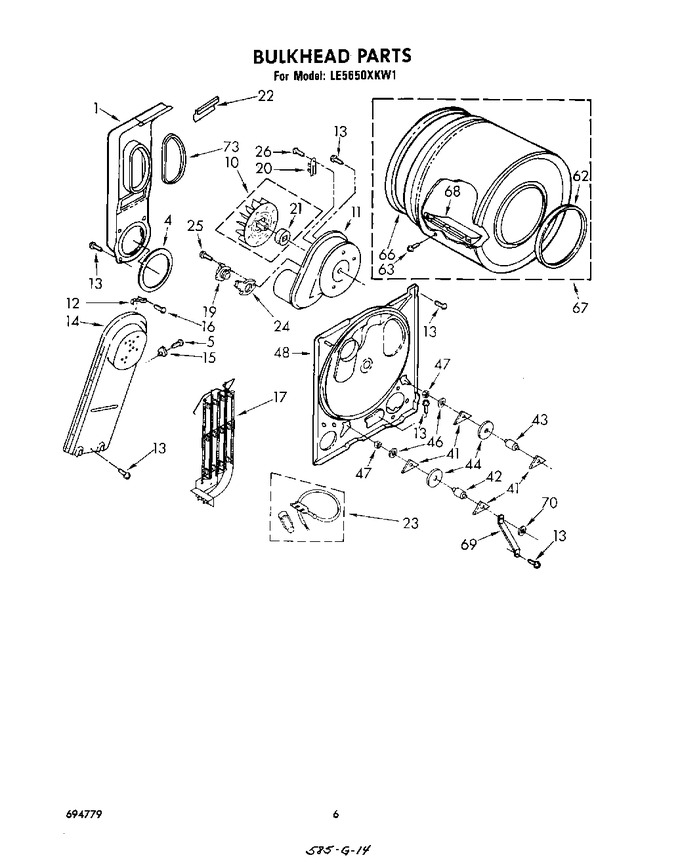

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 302.61 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 37.66 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | 341195 | Thermostat, High-limit 250~f (121~c) |
|
- | |||||
| 16 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693298) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | Element, Heater (Replaces: 660982) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693062) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | Element, Heater (alt.) (Replaces: 693300) |
|
Immediately | $ 60.56 | ||||
| 19 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341146) |
|
Immediately | $ 50.51 | ||||
| 20 | WP3392519 | Thermal Fuse (Replaces: 694511) |
|
Immediately | $ 24.95 | ||||
| 21 | 694630 | Seal, Blower |
|
- | |||||
| 22 | 686770 | Support Protector |
|
- | |||||
| 23 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 24 | 61298 | Thermostat, Heater |
|
- | |||||
| 25 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 26 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 10.72 | ||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685769 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 125.58 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 337928) |
|
$ 336.22 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 146.98 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 |
