Diagram # Part Number Description Series Availability Ships Price Add to Cart
9 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

11 10881207W Assy, Fz Dr Fm Appelez-nous -
15 10058401 Assy, Elect Brkt Appelez-nous -
21 10860801 Liner, Frz Dr I/w Appelez-nous -
23 10704705 Panel-stainless Appelez-nous -
25 10359709 Gasket (w Frz Dr) Appelez-nous -
31 B0523563 Insulation Ft. K Appelez-nous -
32 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

33 10494604 Support, Fz Trim Appelez-nous -
33 10704710 Panel-stainless Appelez-nous -
40 10945940 Insert, Stn Handle Appelez-nous -
41 B0523562 Insul. By The Ft. Appelez-nous -
42 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

43 B8391218 Retainer-dec Pan Appelez-nous -
53 10871112 Cap-gy Fz Hndl Top Appelez-nous -
55 10986104 Facade-gy Disp Appelez-nous -
63 M0213517 Screw K Appelez-nous -
65 M0217701 Screw Appelez-nous -
72 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

91 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

101 C8972403 Stop, Door (blk) Appelez-nous -
105 10494506 Trim, Vertical Appelez-nous -
105 D7828601 Retainer, Door Liner Appelez-nous -
111 C8992901 Clip Appelez-nous -
115 12043805 Cap-grey Switch Appelez-nous -
121 C8982801 Retainer, Door Liner Appelez-nous -
131 10063102 Clip, Door Dike Appelez-nous -
132 10361804 Shim, Dr Bushing Appelez-nous -
139 10504101 Chute, Ice Appelez-nous -
140 10871212 Cap-gy Fz Hndl Bot Appelez-nous -
141 M0226705 Screw, Shoulder Appelez-nous -
145 10602503 Trim, Frz Dr (bottom) Ss Appelez-nous -
149 12044501 Gasket-ice Chute Appelez-nous -
152 10281002 Grommet, Screw Appelez-nous -
155 M0275178 Tape Double Back (roll)k Appelez-nous -
162 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

165 10063207 Dike, I & W Appelez-nous -
171 10952104 Harness-fz Door Appelez-nous -
173 W10857122 Light Bulb   (Replaces: M0360001) In-Stock Immediately $ 14.52

175 10984613 Insert-gy Facade Appelez-nous -
175 10063208 Dike, I & W Appelez-nous -
197 M0311602 Plug, Button (white) Appelez-nous -
199 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

201 10882010 Gy Cavity Assy Q Appelez-nous -
206 10979201 Ext, Fz Dr (wht) Appelez-nous -
219 10941501 Insul, Batt Appelez-nous -
221 10870301 Insul.-i & W Cavity Appelez-nous -
221 M0213815 Screw Appelez-nous -
233 12016901 Insul, Batt (ref. Door) Appelez-nous -
241 B0523596 Insul. By The Ft. Appelez-nous -
241 D7791003 Gasket Cavity Appelez-nous -
243 12016902 Insul, Batt (ref. Door) Appelez-nous -
245 M0216517 Screw Appelez-nous -
246 12106226 Handle, Frz Door (stn) Appelez-nous -
251 10494208 Trim-fz Dr Top Appelez-nous -
255 M0219730 Screw Special Order $ 7.65


    View Diagram in Separate Window     Print Icon   Print Part List

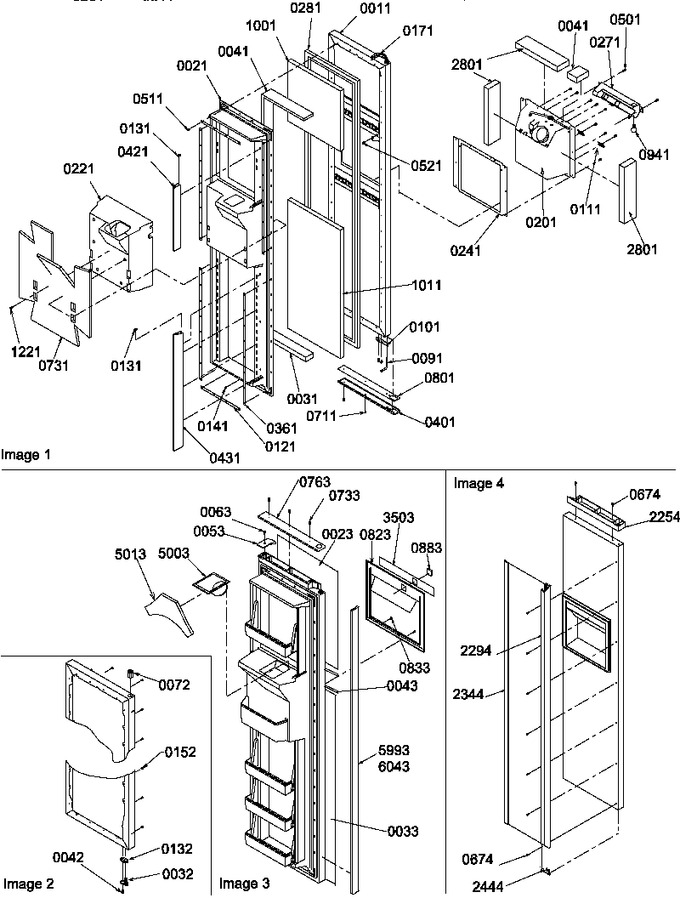

Diagram for SBDE20S4SW (BOM: P1190903W W)
