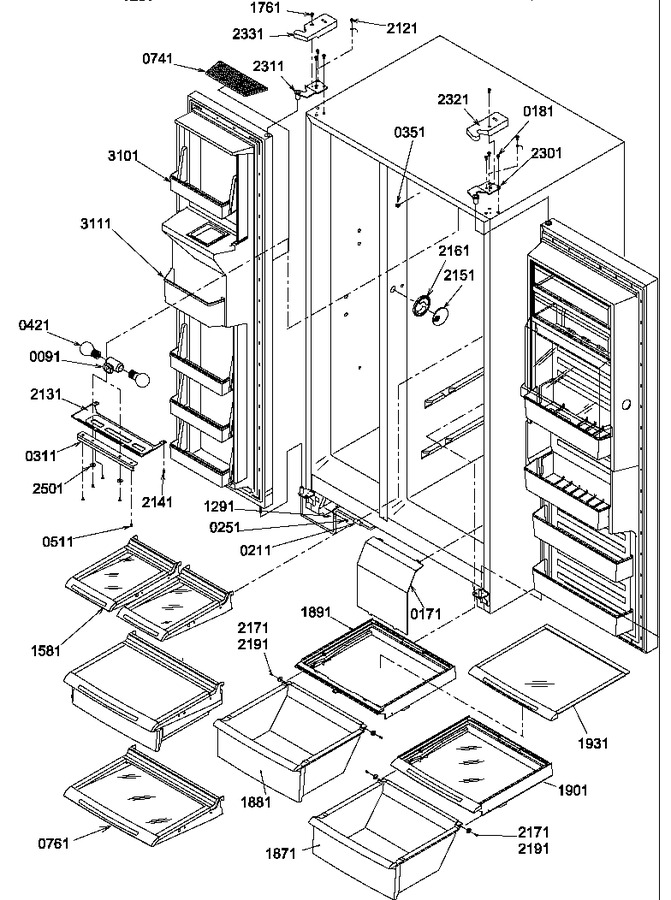

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 12077315 | Hinge, Top L (e-ct) |
|
- | |||||
| 11 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 17 | 10504217 | Hinge- Cover Lh Gray |
|
- | |||||
| 27 | 10504218 | Cover Hinge |
|
- | |||||
| 29 | 10525513 | Shelf, Frz Dr |
|
- | |||||
| 39 | 10534713 | Shelf, Half Frz |
|
- | |||||
| 45 | 10883316 | Assy, Split Glide Shelf |
|
- | |||||
| 55 | 10014716 | Shield, Light |
|
- | |||||
| 73 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
Immediately | $ 14.72 | ||||
| 79 | 10783301 | Pan, Crisper |
|
- | |||||
| 83 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 89 | 10783201 | Pan,crisper |
|
- | |||||
| 91 | 12156201 | Socket, Dual Lamp |
|
- | |||||
| 93 | M0238846 | Screw-sm |
|
- | |||||
| 95 | M0580007 | Grommet, Screw |
|
- | |||||
| 99 | 10882801 | Assy, Crisper Frame |
|
- | |||||
| 103 | 10164808 | Grille, Control |
|
- | |||||
| 109 | 10882809 | Assy, Crisp Frame |
|
- | |||||
| 113 | 10164702 | Control-air |
|
- | |||||
| 123 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 139 | 10783108 | Shelf-top Crisper |
|
- | |||||
| 143 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 165 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 171 | 10914202 | Cover-water Tank |
|
- | |||||
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 197 | M0270508 | Washer |
|
- | |||||
| 211 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 225 | M0202325 | Screw |
|
- | |||||
| 229 | D7750608 | Grille, Sump (satin) |
|
- | |||||
| 249 | 10883317 | Assy Shelf |
|
- | |||||
| 251 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 253 | 12077314 | Hinge, Top R (e-ct) |
|
- | |||||
| 255 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 |
