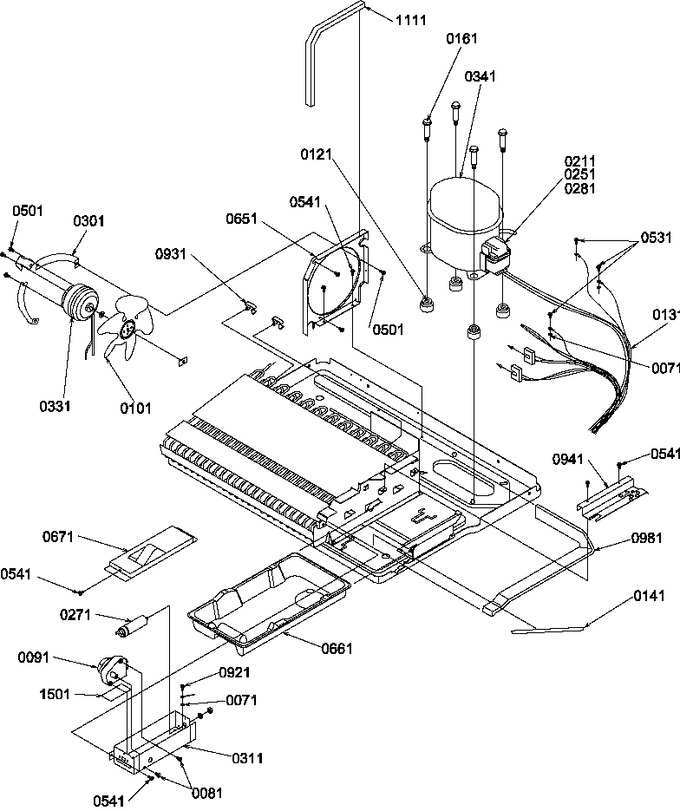

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
71	M0272803		Lock Washer		Appelez-nous	-
81	M0218118		Screw		Appelez-nous	-
91	10129307		Kit, Defrost Timer (230 Vac)		Appelez-nous	-
101	B5742604		Blade, Fan		Appelez-nous	-
121	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
131	10959103		Harness-mc		Appelez-nous	-
141	B5759645		Gasket, Sealing		Appelez-nous	-
161	M0221523		Screw, Shldr		Appelez-nous	-
211	10899501		Clamp, Term. Cover		Appelez-nous	-
251	10899601		Overload/relay		Appelez-nous	-
271	W10848274		Capacitor   (Replaces: 10958301)				$ 185.85
281	10899701		Cover, Terminal		Appelez-nous	-
301	C8982102		Brkt,cond. Mtr		Appelez-nous	-
311	10277024		H V Box-e Ct		Appelez-nous	-
331	D7846901		Motor-condenser		Appelez-nous	-
341	W10309997		Compressor (220/230 Vac 50hz)   (Replaces: 10740321)				$ 583.93
501	M0223803		Screw		Appelez-nous	-
531	WP489128		Screw   (Replaces: M0253516)				$ 11.40
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
651	10845504		Cond. Fn Shrd		Appelez-nous	-
661	10845601		Pan, Drain		Appelez-nous	-
671	10276904		Top, H.v. Box (e-ct)		Appelez-nous	-
921	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
931	10874601		Clip-cond.		Appelez-nous	-
941	10845302		H.v. Box Shelf-e Ct		Appelez-nous	-
981	A3189367		Gasket-foam		Appelez-nous	-
1111	A3030359		Gasket		Appelez-nous	-
1501	A3189364		Gasket, Foam		Appelez-nous	-
