SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Fz Door


04 - Fz Shelves And Light


05 - H&les,trim,toe Grille Kits


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger, Im, & Im Parts


08 - Ice Maker/control Assemblies


09 - Machine Compartment


10 - Ref Door


11 - Ref Door And Toe Grille


12 - Ref/fz Shelves, Lights, And Hinges


13 - Rollers, Hinges, And Evap Assemblies


14 - Shelves, Deli, And Crisper Assemblies

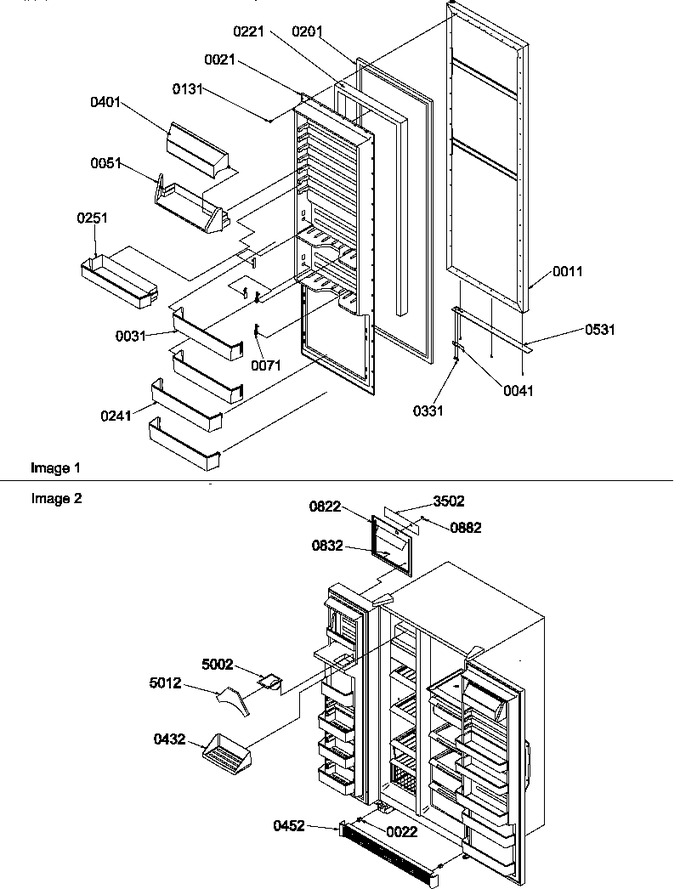

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881010W		Assy, Ref Dr Fm (white)		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
22	M0117302		Clip, Grille		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
41	C8972403		Stop, Door (blk)		Appelez-nous	-
51	12083301		Shelf, Dairy		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
131	M0219730		Screw				$ 7.65
201	10359701		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
432	10870801		Shelf, Ice Cream		Appelez-nous	-
452	10470301		Kit, Toe Grille (blk)		Appelez-nous	-
531	10494603		Support Ref Trim (btm)		Appelez-nous	-
822	10986107		Facade-black		Appelez-nous	-
832	M0219601		Screw		Appelez-nous	-
882	12036402		Cap-switch Bk		Appelez-nous	-
3502	10984609		Insert-e Facade		Appelez-nous	-
5002	10504101		Chute, Ice		Appelez-nous	-
5012	12044501		Gasket-ice Chute		Appelez-nous	-
