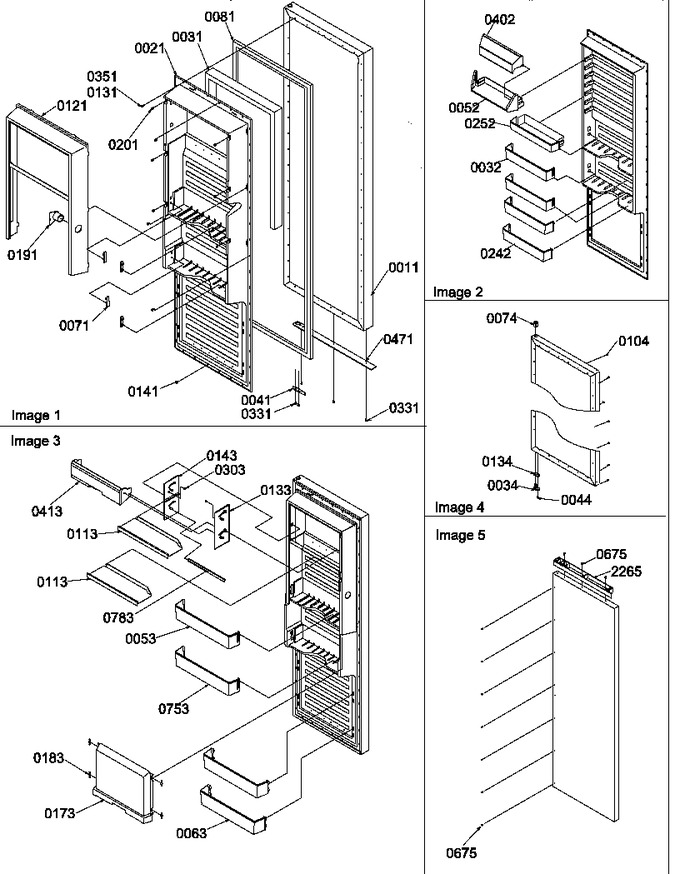

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881010W		Assy, Ref Dr Fm (white)		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	10520410		Shelf, Chiller		Appelez-nous	-
34	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972403		Stop, Door (blk)		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
52	12083301		Shelf, Dairy		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
74	10961001		Bushing, Door (wht)		Appelez-nous	-
81	10359708		Gasket, Door (w Ref)		Appelez-nous	-
104	10281002		Grommet, Screw		Appelez-nous	-
131	M0219730		Screw				$ 7.65
134	10361804		Shim, Dr Bushing		Appelez-nous	-
141	M0226705		Screw, Shoulder		Appelez-nous	-
242	10521814		Shelf-ref Door		Appelez-nous	-
252	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
402	10527307		Door, Dairy		Appelez-nous	-
471	10494603		Support Ref Trim (btm)		Appelez-nous	-
675	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
2265	10979101		Exten. W Ref Door		Appelez-nous	-
