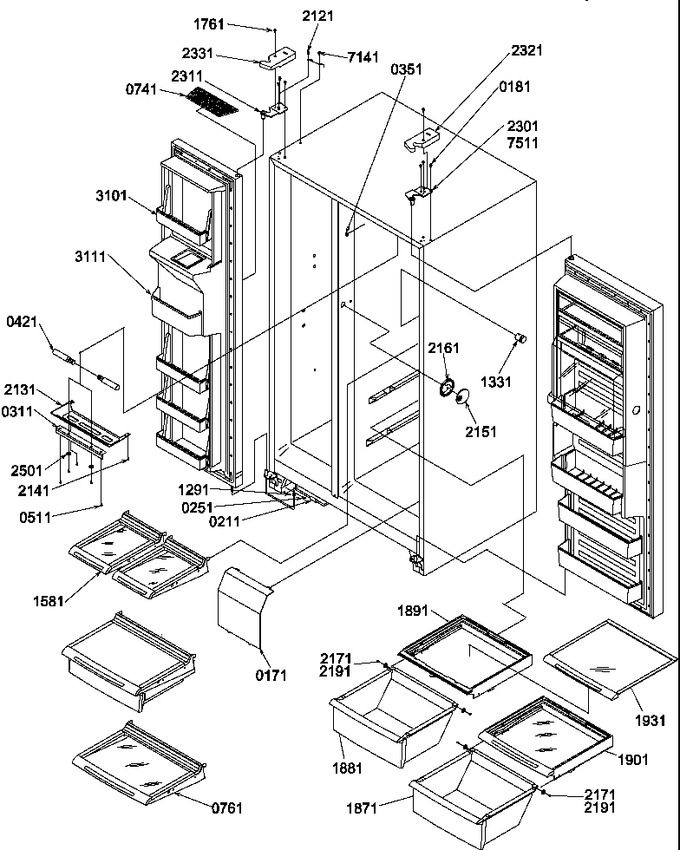

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 171 | 10914202 | Cover-water Tank |
|
- | |||||
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 211 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 251 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 311 | 10014716 | Shield, Light |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 741 | D7750602 | Grille Sump (black) |
|
- | |||||
| 761 | 10883317 | Assy Shelf |
|
- | |||||
| 1291 | M0108001 | Clamp, Tube |
|
- | |||||
| 1331 | 10033201 | Deflector, Air |
|
- | |||||
| 1761 | M0202325 | Screw |
|
- | |||||
| 1871 | 10783301 | Pan, Crisper |
|
- | |||||
| 1881 | 10783201 | Pan,crisper |
|
- | |||||
| 1891 | 10882801 | Assy, Crisper Frame |
|
- | |||||
| 1901 | 10882809 | Assy, Crisp Frame |
|
- | |||||
| 1931 | 10783108 | Shelf-top Crisper |
|
- | |||||
| 2121 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.72 | |||||
| 2131 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2171 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 2191 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 2301 | 12077314 | Hinge, Top R (e-ct) |
|
- | |||||
| 2311 | 12077315 | Hinge, Top L (e-ct) |
|
- | |||||
| 2321 | 10504217 | Hinge- Cover Lh Gray |
|
- | |||||
| 2331 | 10504218 | Cover Hinge |
|
- | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 3101 | 10525513 | Shelf, Frz Dr |
|
- | |||||
| 3111 | 10534713 | Shelf, Half Frz |
|
- | |||||
| 7141 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 7511 | 12223003 | Shim, Top Hinge |
|
- |
