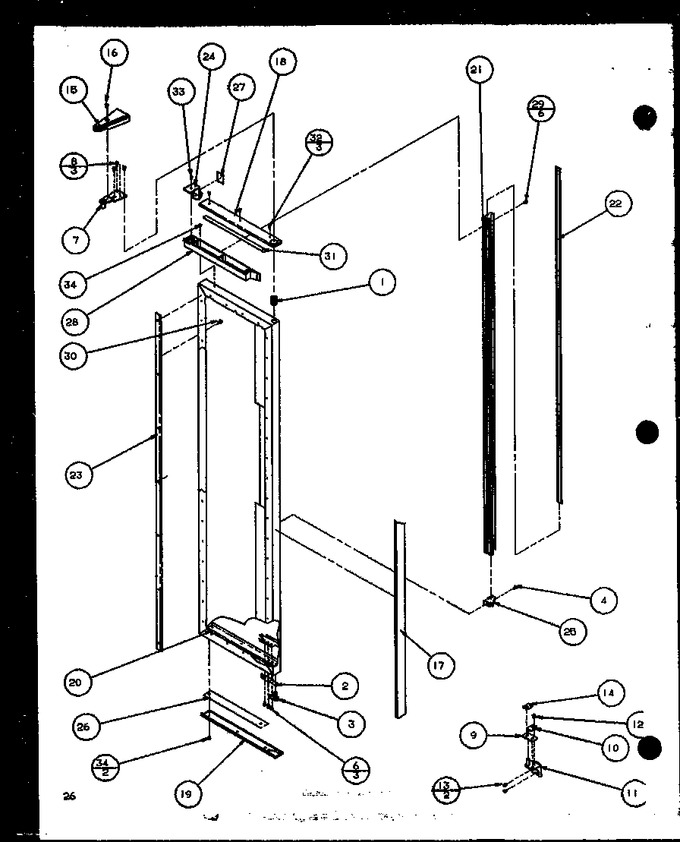

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8965901 | Bushing, Top |
|
- | |||||
| 2 | C8972401 | Stop, Door (blk) |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751402) |
|
Immediately | $ 7.55 | ||||
| 4 | M0213815 | Screw |
|
- | |||||
| 6 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 7 | D7855704 | Hinge Assy, Top |
|
- | |||||
| 8 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 9 | B8386701 | Kit,btm Hinge Shim |
|
- | |||||
| 9 | B8386702 | Kit,btm Hinge Shim |
|
- | |||||
| 9 | B8386703 | Kit,btm Hinge Shim |
|
- | |||||
| 10 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 7.55 | ||||
| 11 | D7757705 | Hinge Assy |
|
- | |||||
| 12 | WPW10068250 | Screw (Replaces: M0202530) |
|
$ 4.27 | |||||
| 13 | M0246258 | Screw |
|
- | |||||
| 14 | B8387701 | Shim, Door Closure |
|
- | |||||
| 14 | B8387702 | Shim, Door Closure |
|
- | |||||
| 15 | D7870702 | Cover, Hinge |
|
- | |||||
| 16 | M0202325 | Screw |
|
- | |||||
| 17 | D7830003 | Trim |
|
- | |||||
| 18 | D7830302 | Trim |
|
- | |||||
| 19 | D7830402 | Trim |
|
- | |||||
| 20 | D7826502 | Strip, Trim Top |
|
- | |||||
| 21 | D7826703 | Handle |
|
- | |||||
| 22 | D7826804 | Insert Handle |
|
- | |||||
| 23 | D7826901 | Top Strip |
|
- | |||||
| 24 | D7828005 | Cap, Handle |
|
- | |||||
| 25 | D7828101 | End Cap, Handle Bottom |
|
- | |||||
| 26 | D7871202 | Spacer, Bottom Trim |
|
- | |||||
| 27 | D7853501 | Nameplate End Cap |
|
- | |||||
| 28 | YD7866301 | Spacer-door |
|
- | |||||
| 29 | M0211005 | Screw |
|
- | |||||
| 30 | M0242918 | Screw |
|
- | |||||
| 31 | R0195038 | Tape, Double Back, Trim Door T |
|
- | |||||
| 32 | M0213815 | Screw |
|
- | |||||
| 33 | M0213521 | Screw |
|
- | |||||
| 34 | M0219717 | Screw |
|
- |
